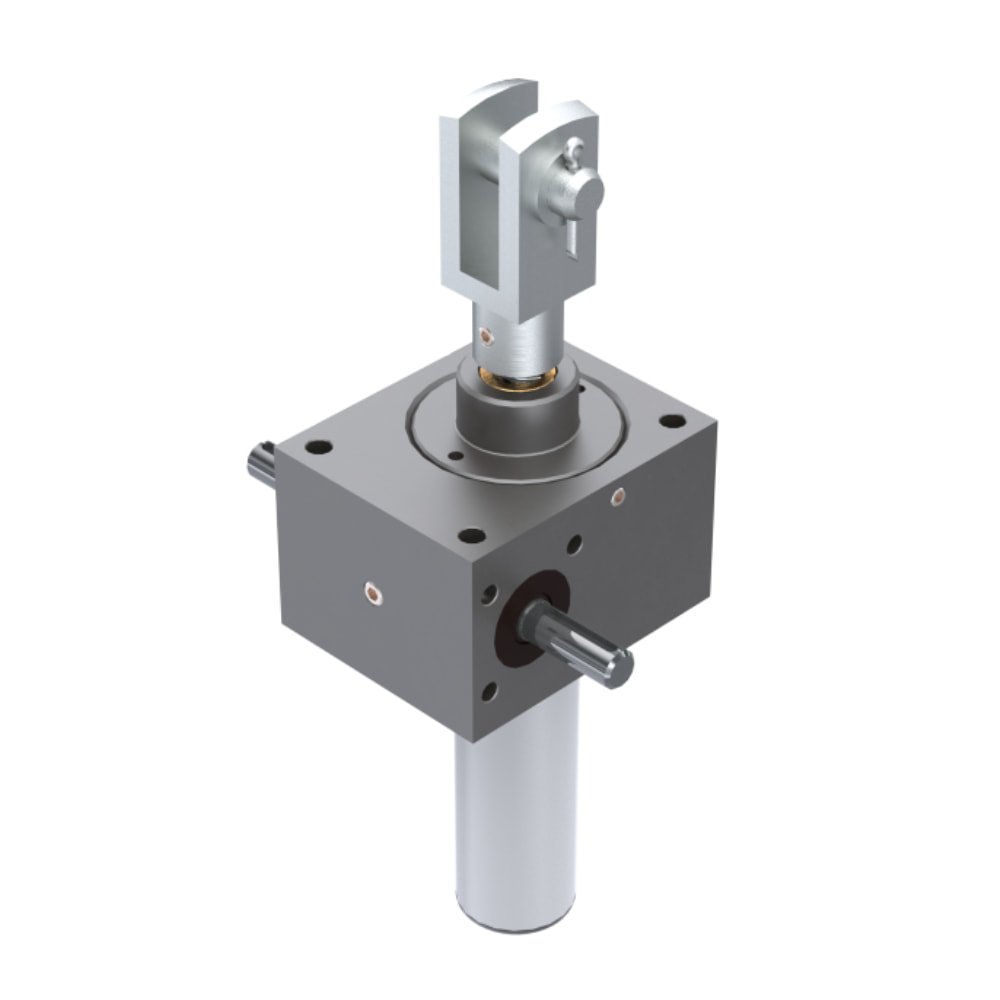

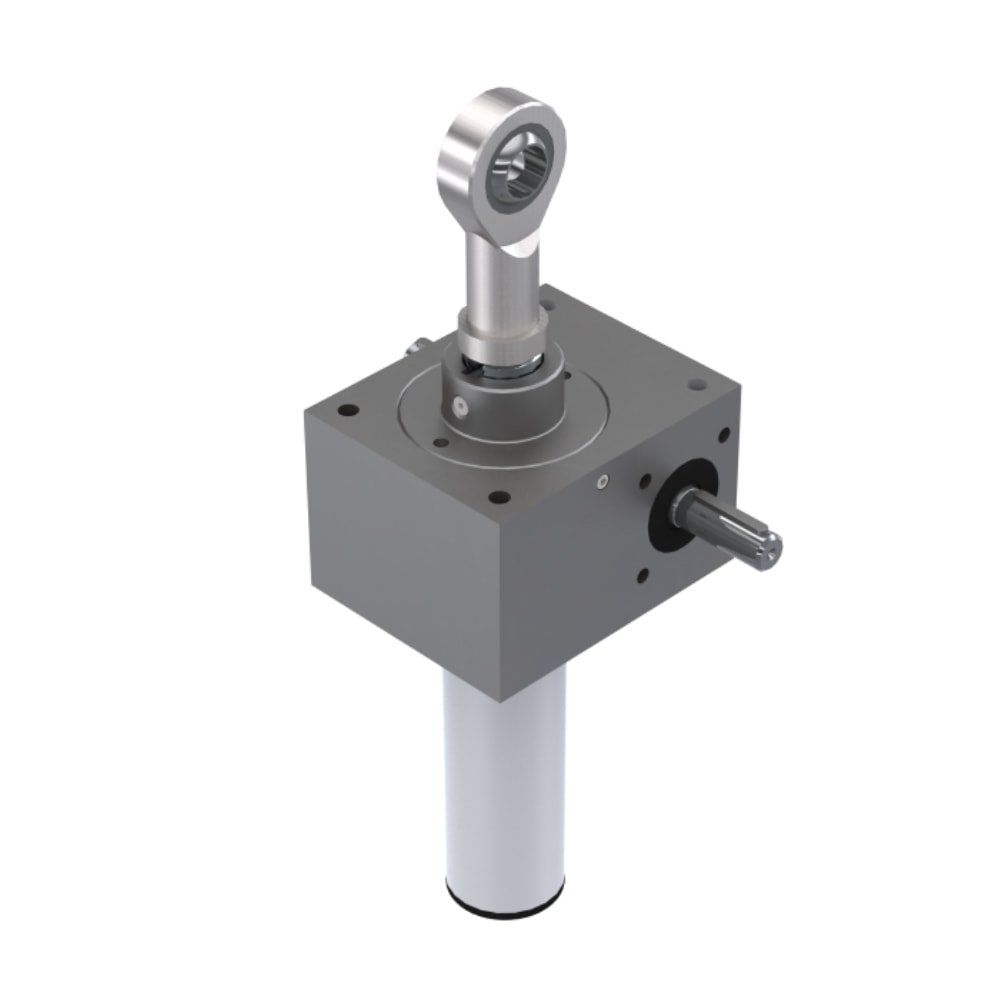

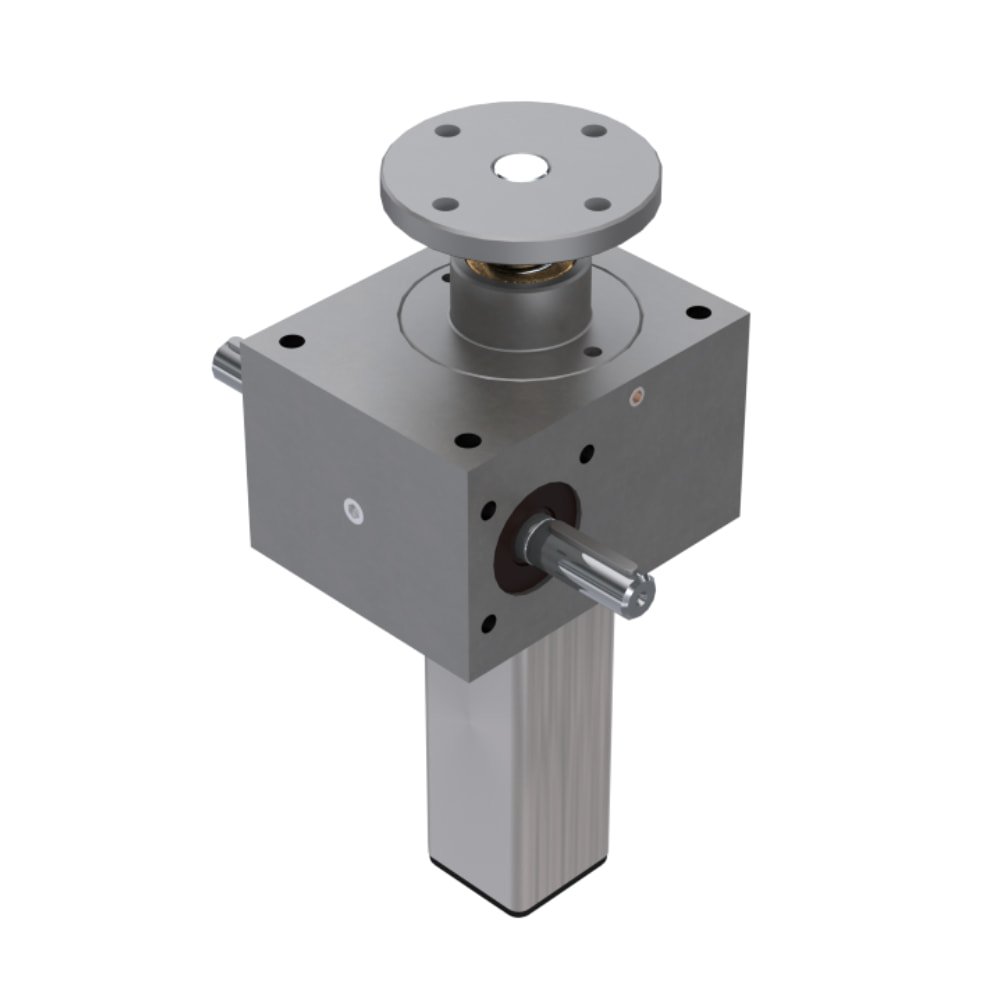

Mini Cubic Screw Jack

Product Detail

The LiuDrive Mini Cubic Screw Jack is the smallest and one of the most popular models in our range. Despite its compact dimensions of just 50 × 60 × 50 mm, it is capable of lifting loads of up to 2.5 kN. It is widely used for conveyor belt and platform adjustment, either operated manually or driven by an external motor.

The aluminium housing is precision-machined, anodised, and assembled with stainless and high-grade steel components, ensuring durability and reliable performance. Do not let its compact size fool you—this small but powerful screw jack is ideally suited for accurate manual adjustment in limited installation spaces.

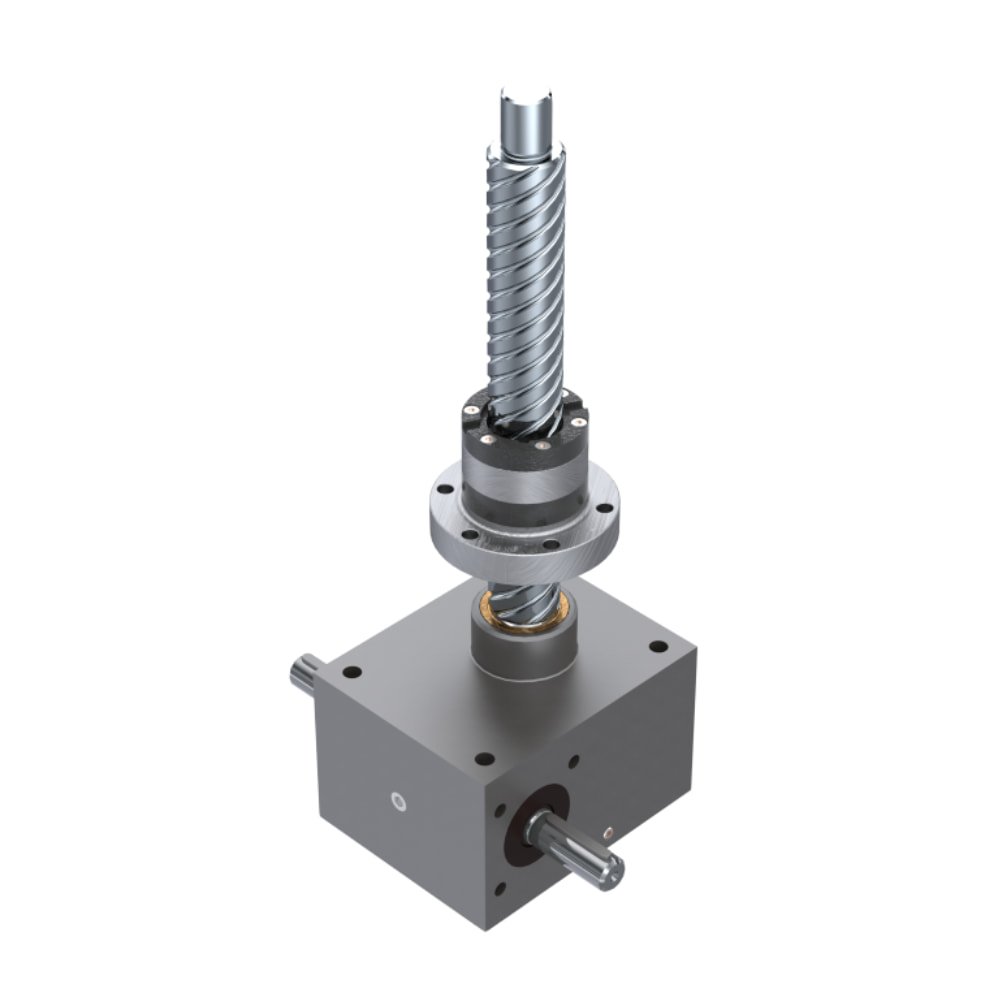

The Mini Cubic utilises a trapezoidal lead screw as standard and can be built in translating, keyed translating, or rotating configurations. Customers can further configure key parameters such as travel rate, stroke length, and lead screw material to suit specific application requirements.

Designed for modular system layouts, the Mini Cubic Screw Jack can be combined with bevel gearboxes and drive shafts to create custom multi-jack arrangements, enabling flexible mechanical solutions for compact lifting and positioning tasks.
