SHE Series Classic Screw Jack

Product Detail

The LiuDrive SHE Series Screw Jacks are engineered for precision, durability, and wide-ranging industrial applications. Standard capacities range from 5 kN to 2000 kN, with customized designs available up to 3500 kN.

Features:

• Precision Worm Gear Set: Ensures smooth operation and high efficiency

• Robust Housing: Provides durability in demanding environments

• Integrated Lubrication: Two mechanisms for reliable performance

• Versatile Configurations: Machine screws, ball screws, and roller screws available

• Material Options: Standard materials or full stainless steel for corrosion resistance

• Temperature Range: Operates from –50°C to +200°C

• Safety Features: Anti-backlash design, safety nuts, self-locking spindles

Configurations:

Basic Design

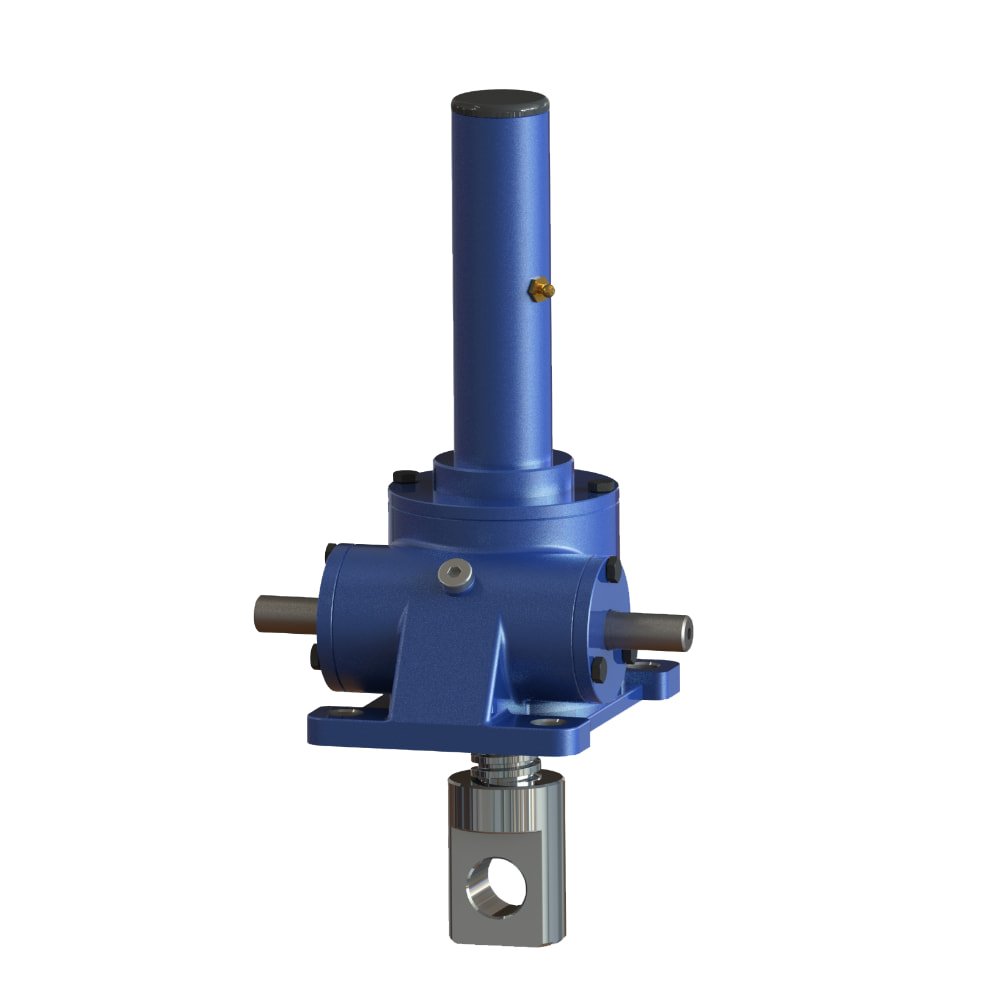

• 1A Configuration (Spindle Above): Spindle moves to transmit linear motion

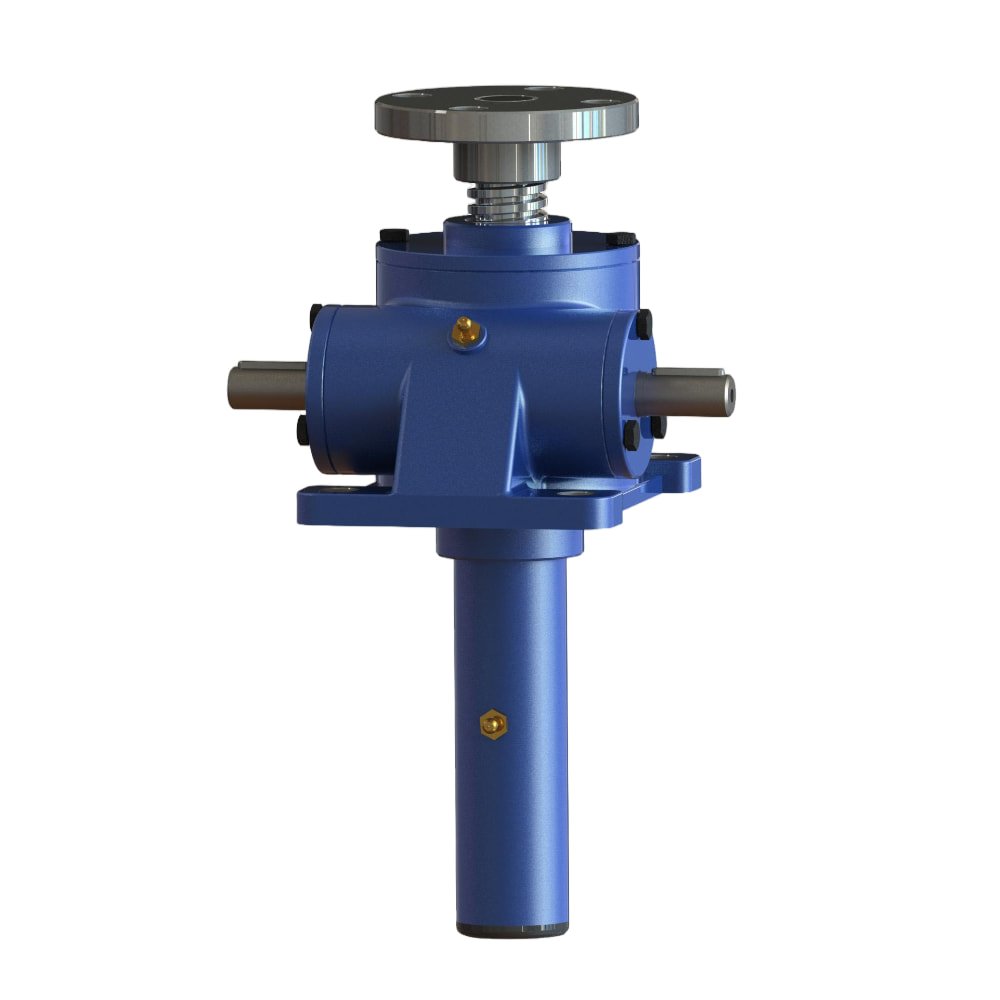

• 1B Configuration (Spindle Below): Same function with inverted spindle orientation

Running Nut Design

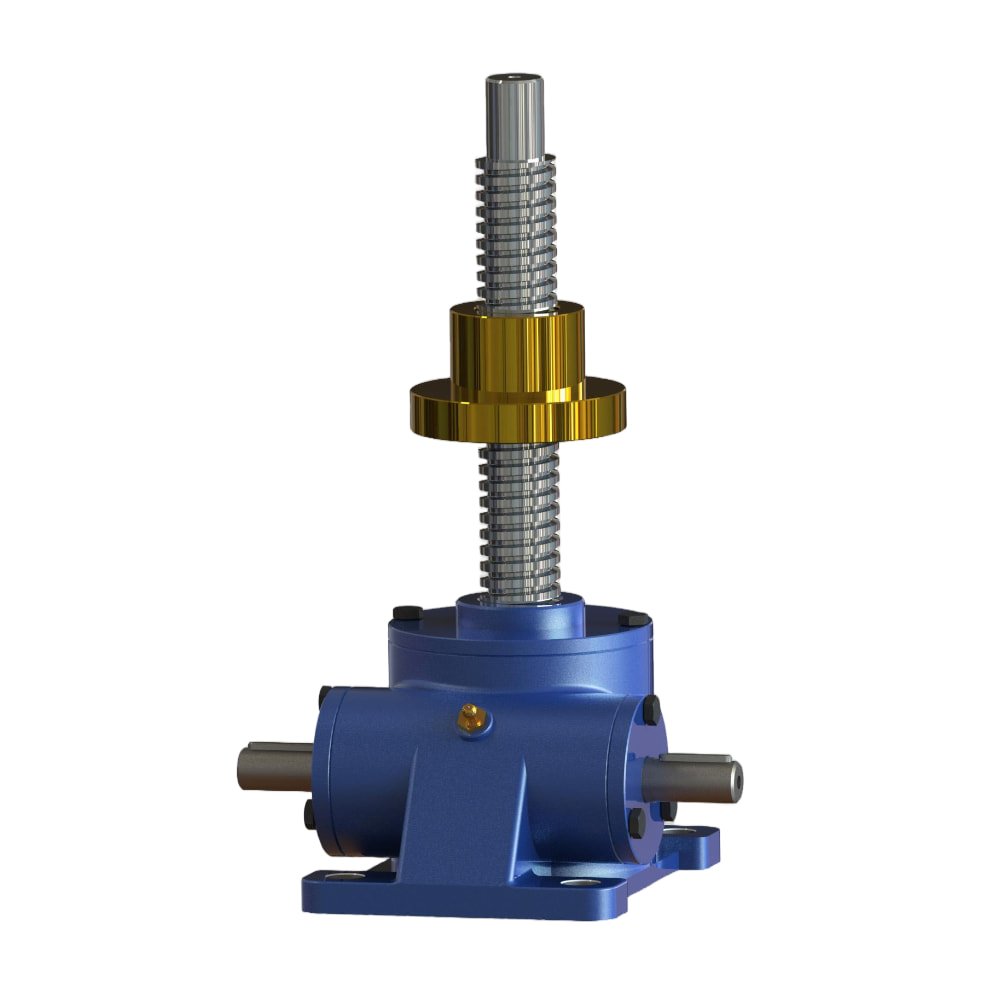

• 2A Configuration (Running Nut, Spindle Above): Nut moves axially for lifting

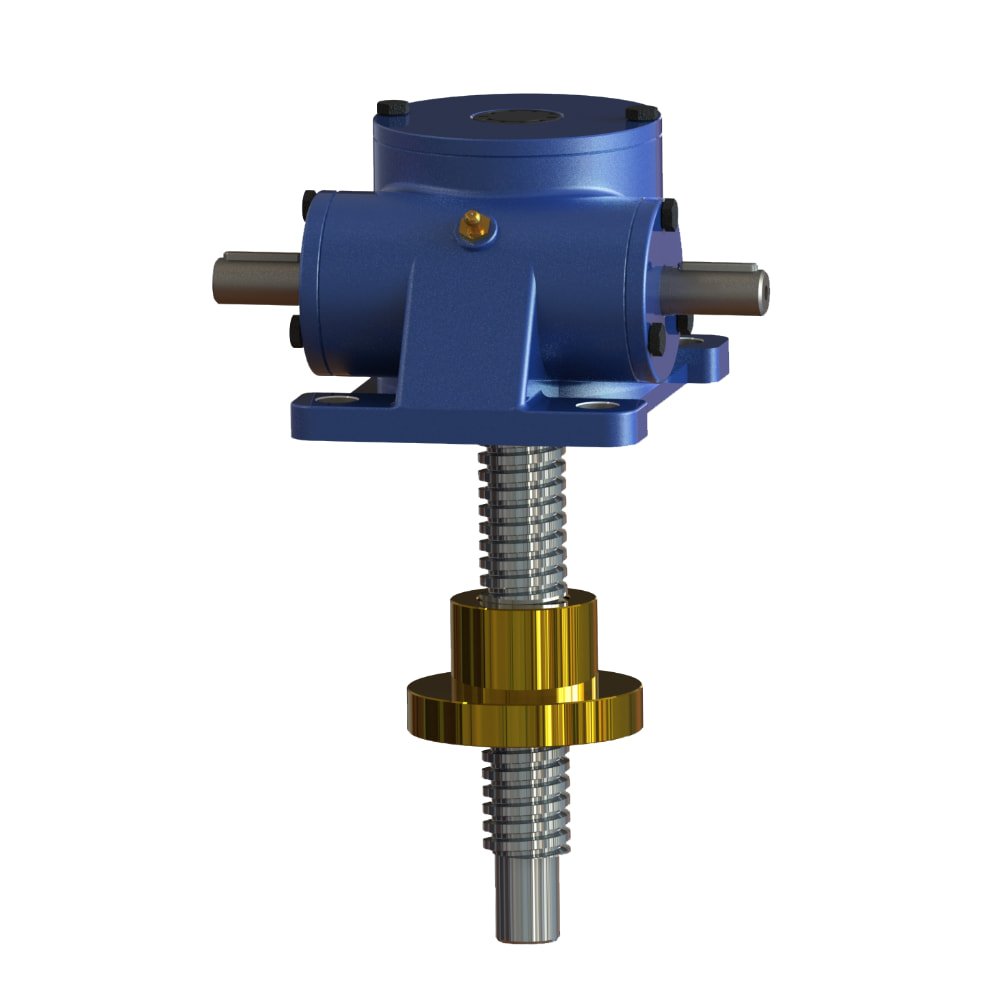

• 2B Configuration (Running Nut, Spindle Below): Same function with inverted orientation

Product Variants:

• Machine Screw Jack: Capacities 5 kN to 2000 kN; upright and inverted designs

• Ball Screw Jack: Capacities 10 kN to 500 kN; integral safety devices and zero-backlash

• Stainless Steel Screw Jack: Capacities 10 kN to 1000 kN; fully sealed for corrosive environments

Applications:
Suitable for production equipment, assembly, storage, mechanical handling, food processing, mining, shipbuilding, and more. Custom designs are available for extreme mechanical or chemical conditions.

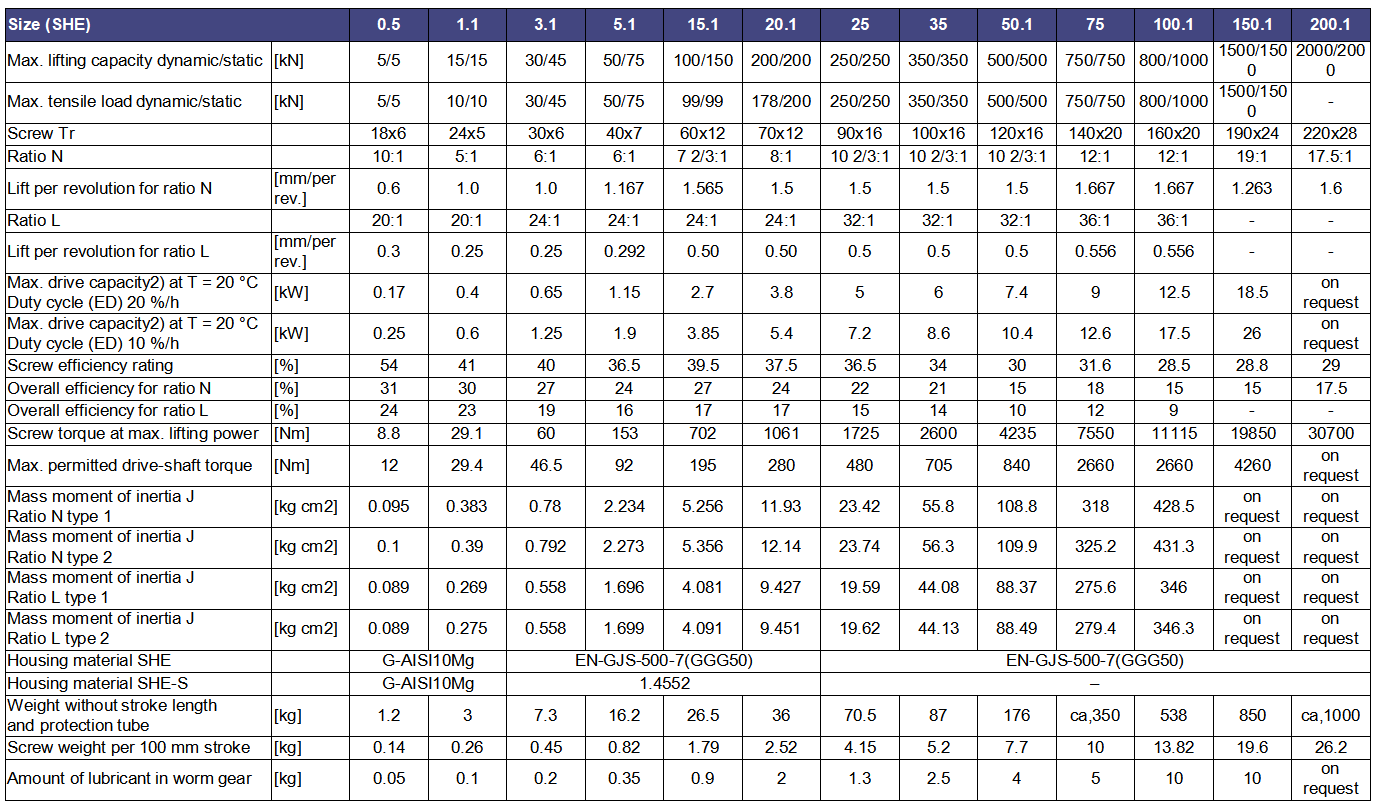

Technical Data
