Load Capacity: 50 kN – 250 kN (standard range)
Housing Material: GGG / Stainless Steel
Lead Screw Options:
• Standard (1× Pitch)
• Double Lead (2× Pitch)
• Anti-Rotation (Keyed)
• Stainless Steel
• Left-Hand Thread
• Ball Screw
Custom Designs: Available
Dimensionally Interchangeable with Other Brands: Pfaff
Delivery Time: 15 – 25 Days

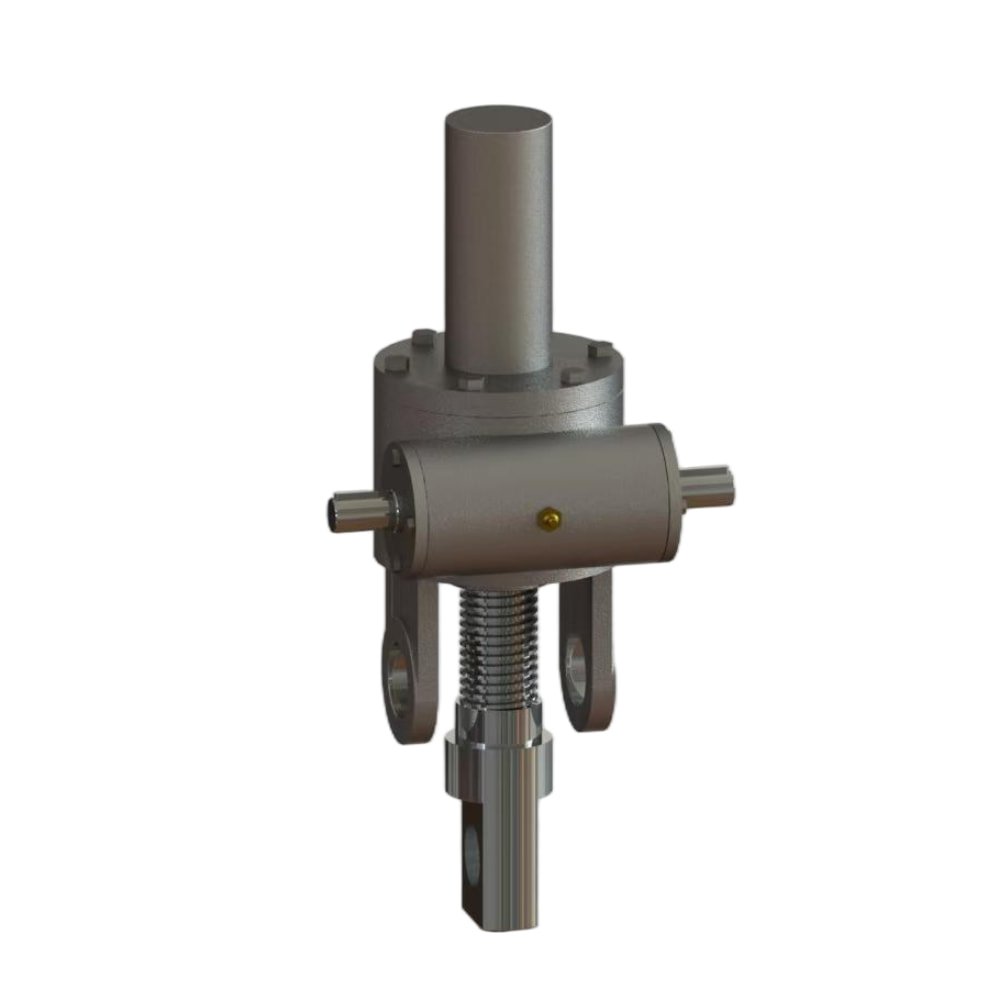

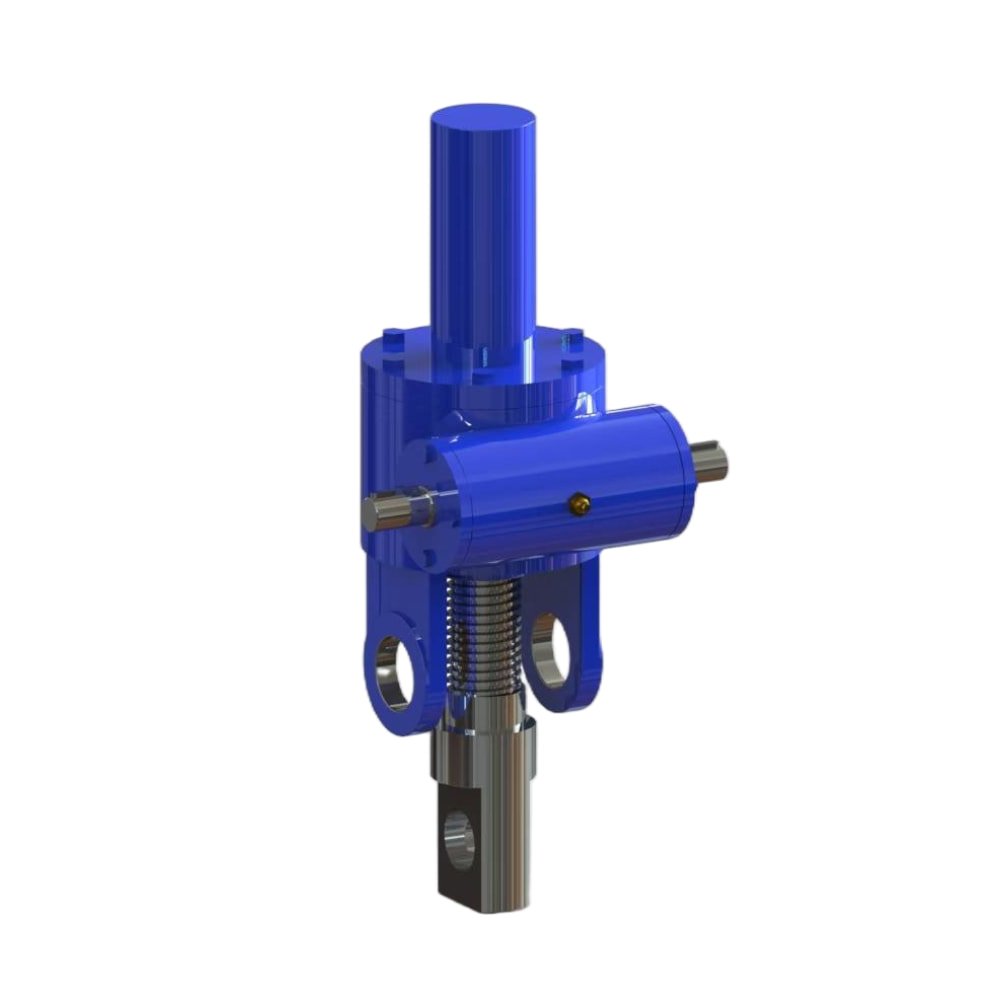

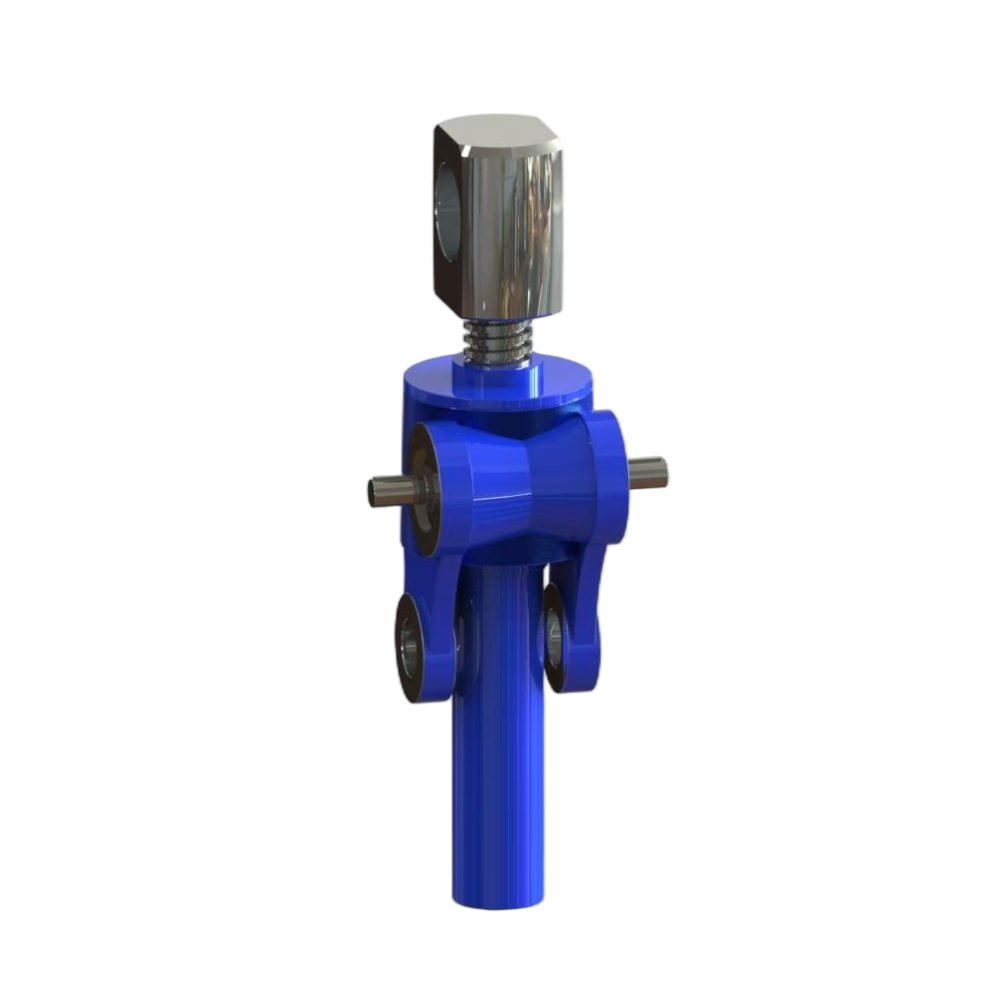

The LiuDrive SSP Series Stainless Steel Screw Jacks are designed for harsh environments such as modern paper machines, food processing, chemical, explosion-proof, and petroleum refining industries. The SSP units can be mechanically coupled to create arrays to achieve the required overall system capacity.
Features:
Load Range: 50 kN to 250 kN (5 – 25 ton)
Sizes: 4 sizes available
Drive Speed: Up to 1500 rpm
Screw Type: Self-locking trapezoidal machine screw, high-grade stainless steel
Motor Mounting: External motor flange, standard European geometry
Housing: FEM-optimized design with integrated cast swivel brackets
Protection: Head machined for protective boot attachment
Lubrication: High-quality lubrication
Gear Ratios: Two options – normal “N” and slow “L”
Compatibility: Interchangeable with other metric stainless steel worm gear screw jacks
Customization: Custom designs available, consultation with engineers for specific requirements
This system combines high-quality materials, modern design, and versatility for various industrial applications.
