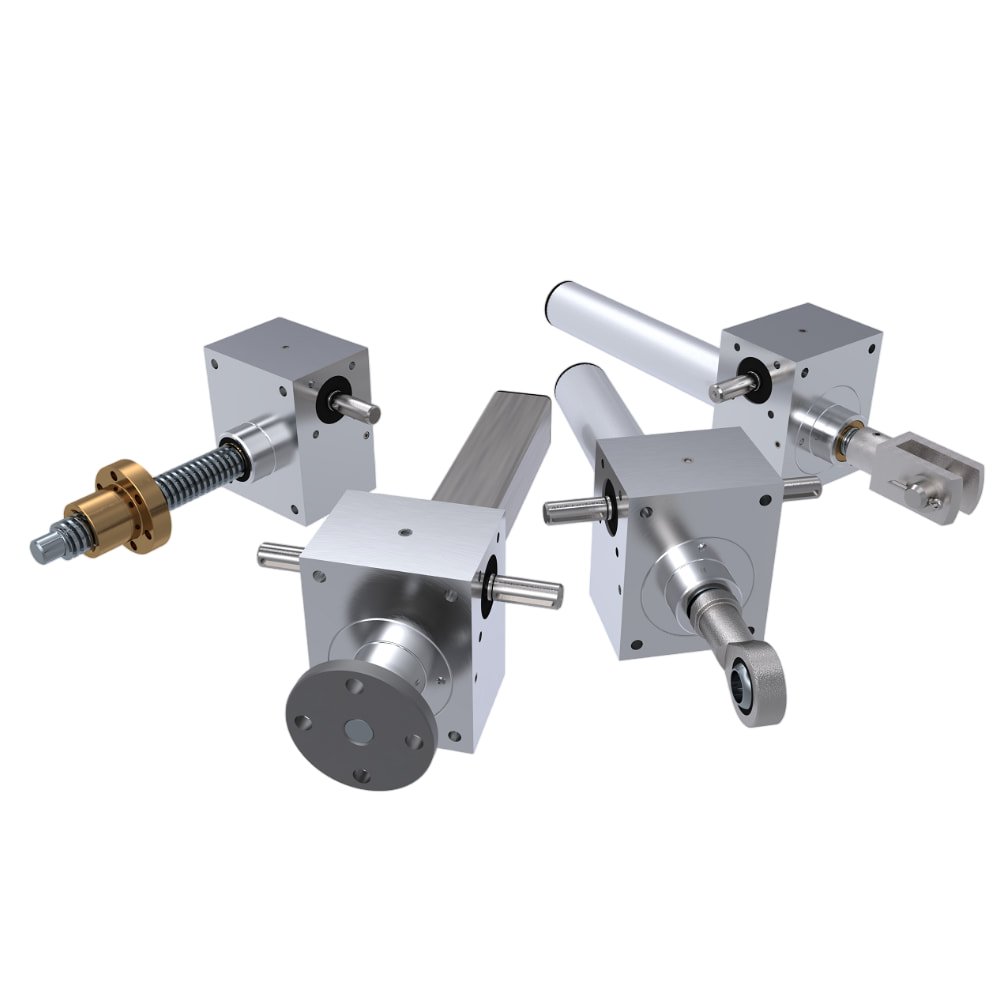

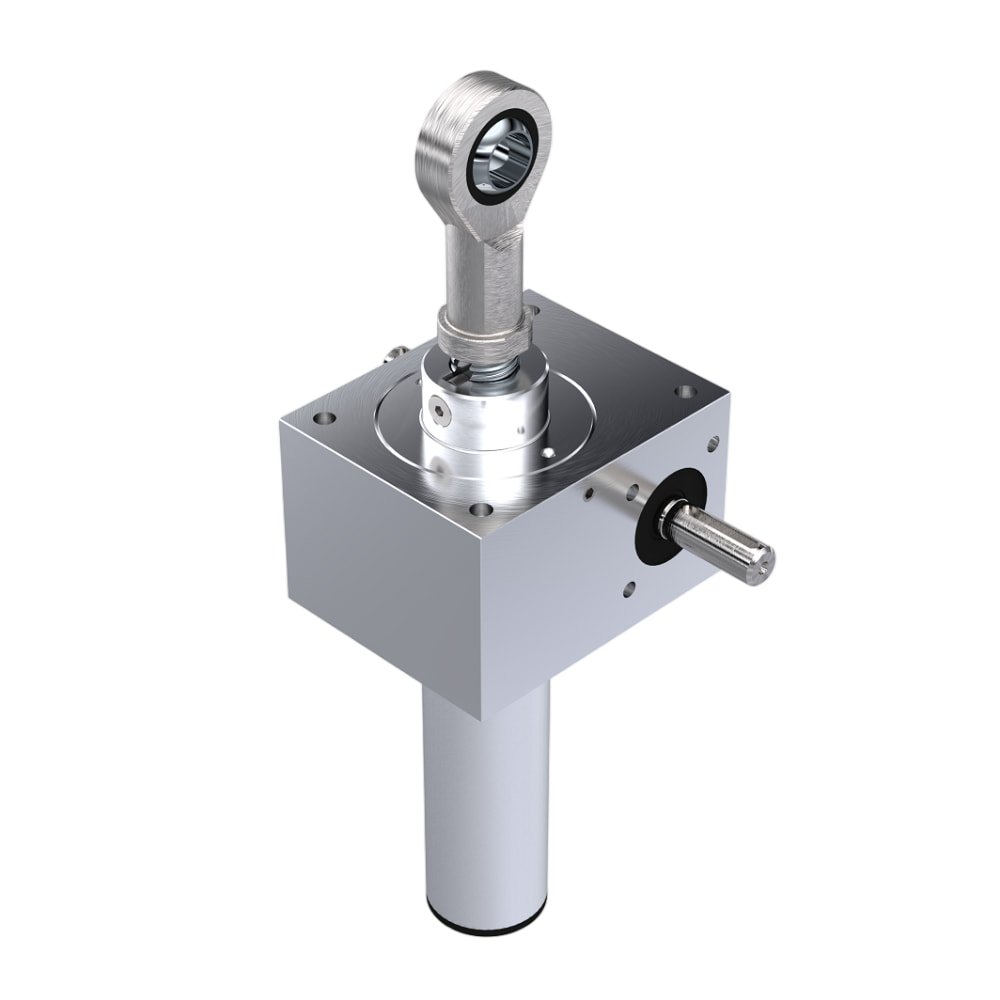

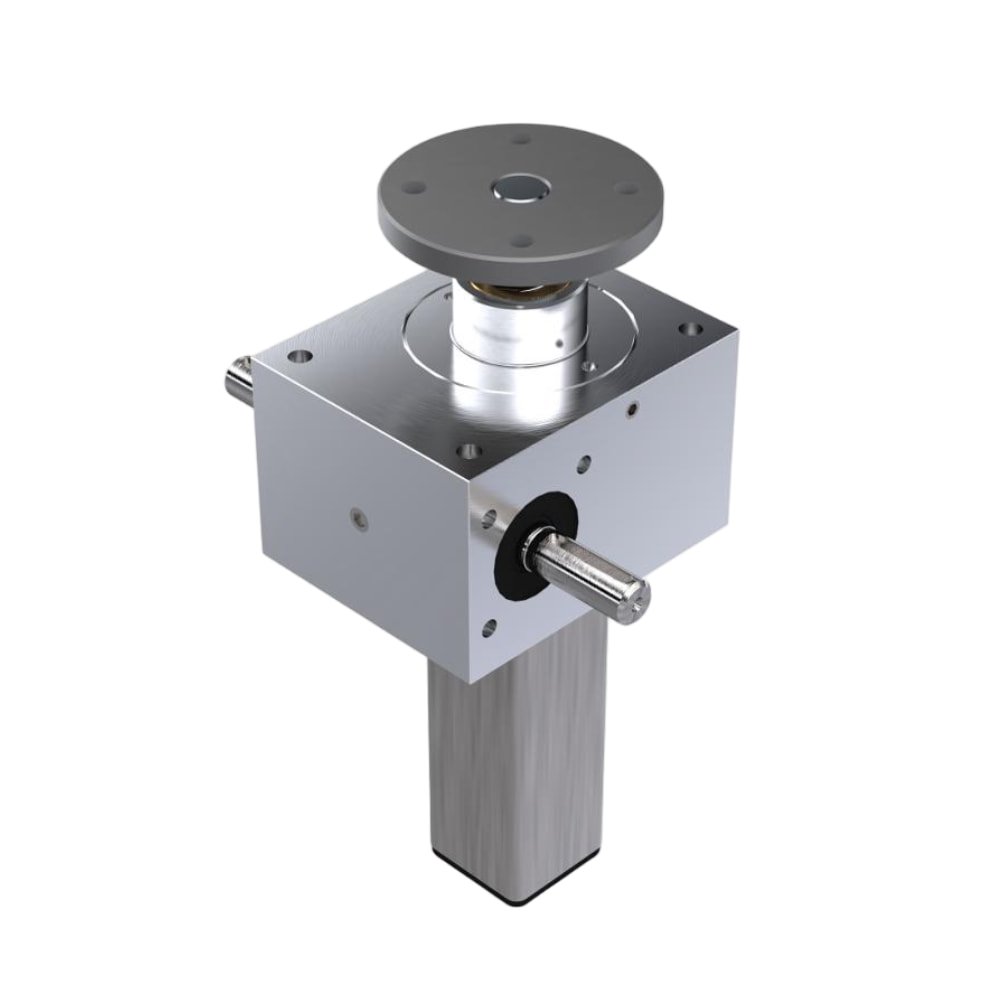

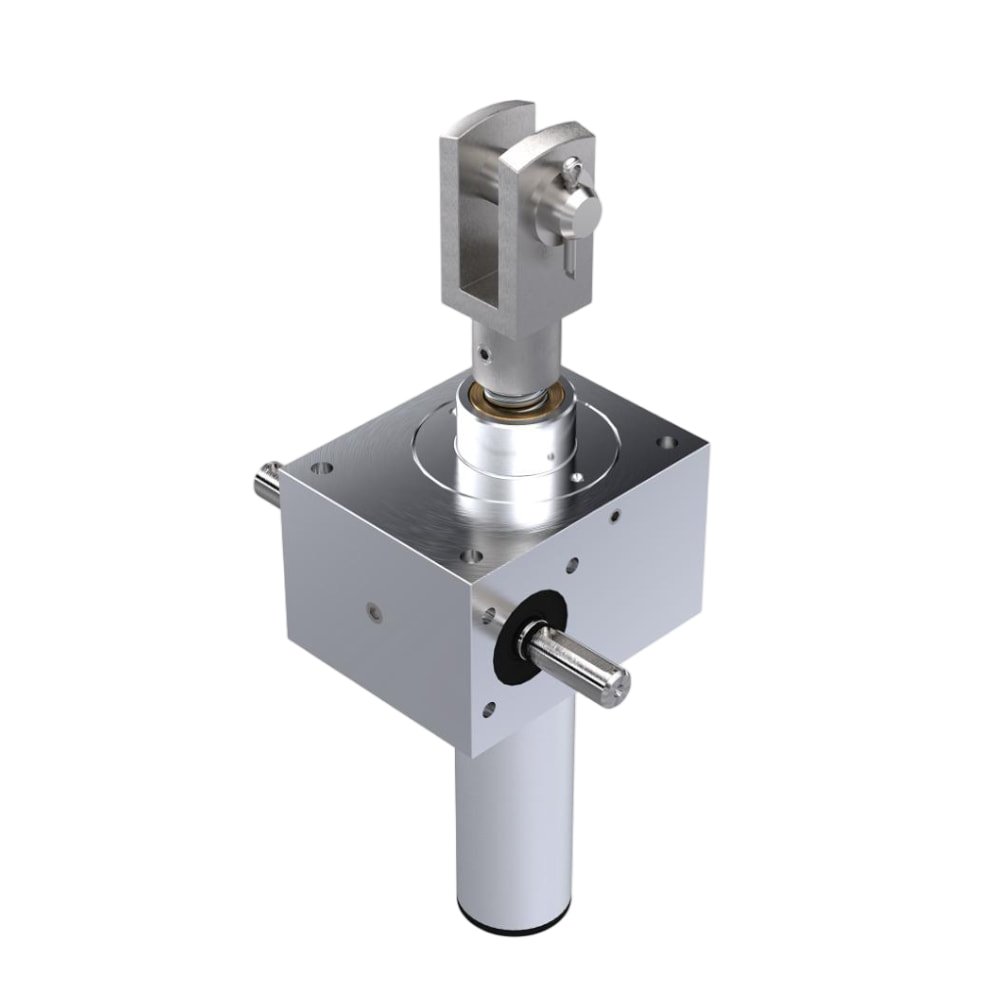

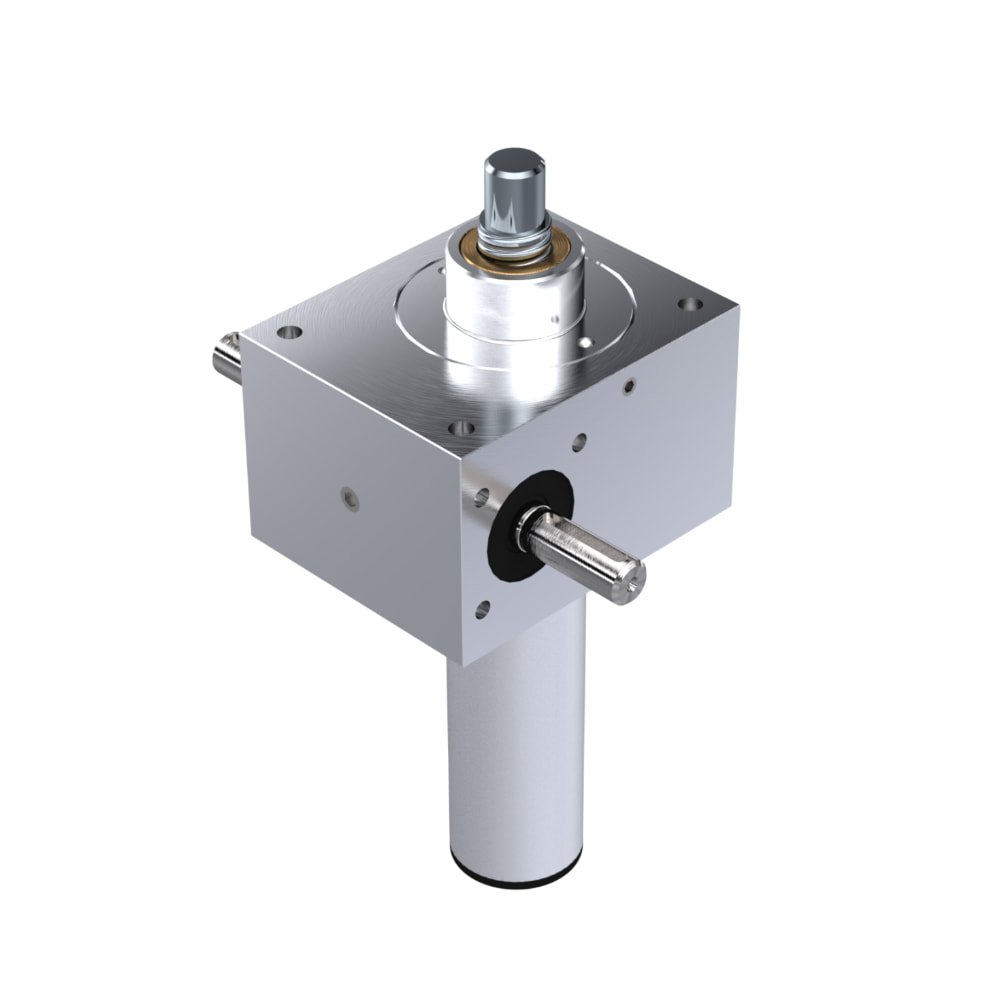

SEL Series Cubic Worm Screw Jack

Load Capacity: 5 kN – 100 kN (standard range)
Housing Material: G-AL / GGG / Cast Steel / Stainless Steel
Lead Screw Options:
• Standard (1× Pitch)
• Double Lead (2× Pitch)
• Anti-Rotation (Keyed)
• Stainless Steel
• Left-Hand Thread
• Ball Screw
Custom Designs: Available
Dimensionally Interchangeable with Other Brands: Setec
Delivery Time: 7 – 15 Days

Product Detail

The LiuDrive SEL Series Cubic Worm Screw Jacks are designed for high-quality performance and versatility. With a load range of 5 kN – 100 kN (0.5 – 10 ton), the compact cubic design and universal mounting simplify alignment during installation. This series is ideal for applications where moderate loads must be lifted accurately, positioned precisely, and safely held at medium duty cycles, moderate lifting speeds, and confined spaces.

Features:

Mechanical Screw Jack European Light Series: 5 – 100 kN (0.5 – 10 ton)
Housing: High-strength aluminium alloy
Sizes: 5 options (SEL5, SEL10, SEL25, SEL50, SEL100)
Reduction Ratios: 3 options (1/5, 1/10, 1/30)
Lifting/Thrust Speed: Up to 15,200 mm/min
Screw Types:
- “T” Version: Trapezoidal spindle (self-locking)

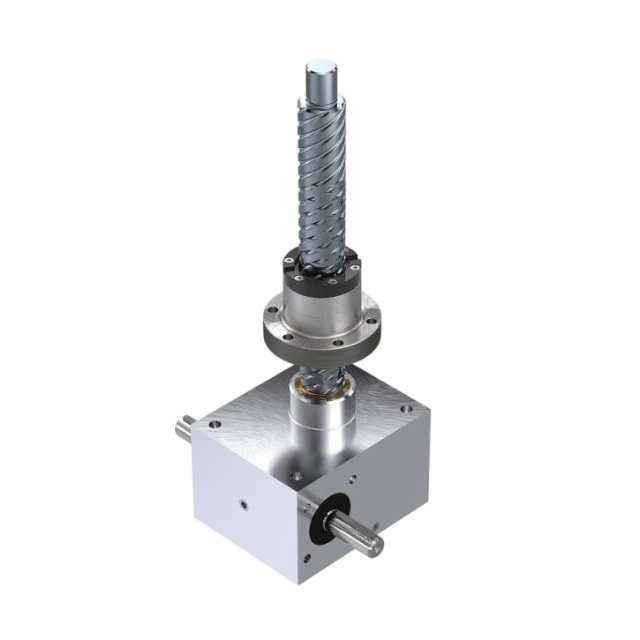

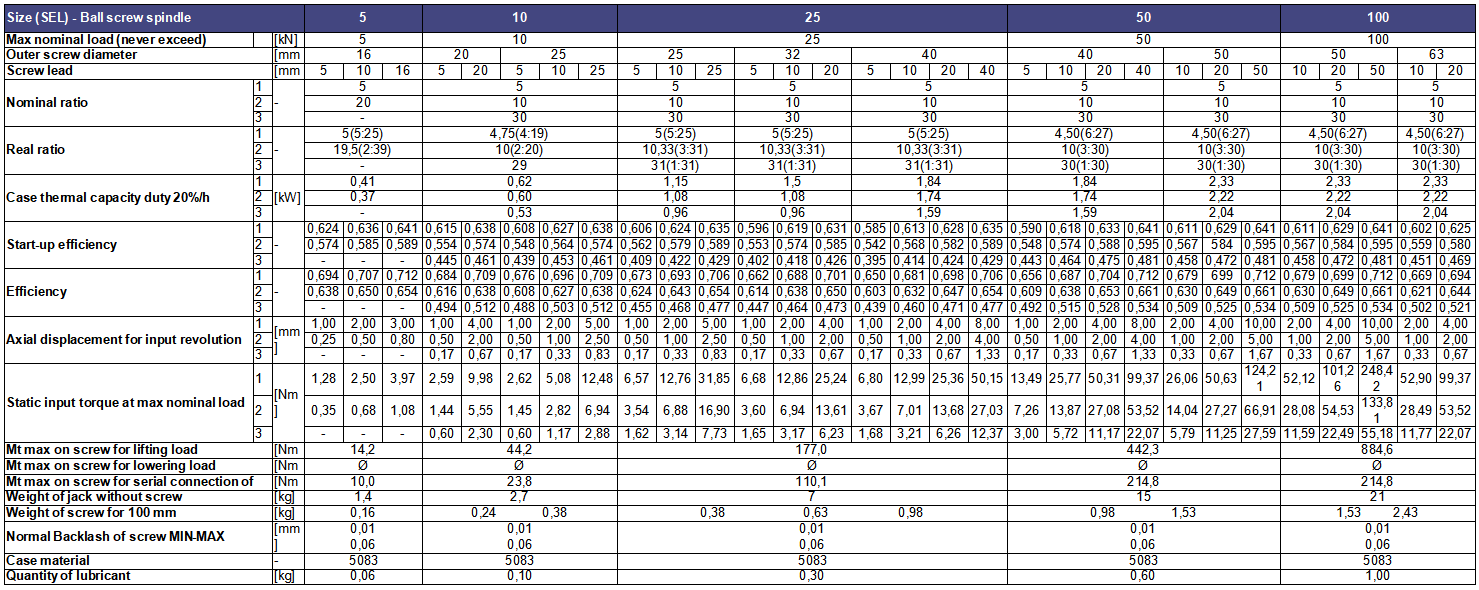

- “S” Version: Ball Screw spindle (high efficiency)
Lubrication: Grease-lubricated
Design: Modular, compact cubic housing for maximum adaptability
Accessories: Wide range of standard options; special executions available on request
