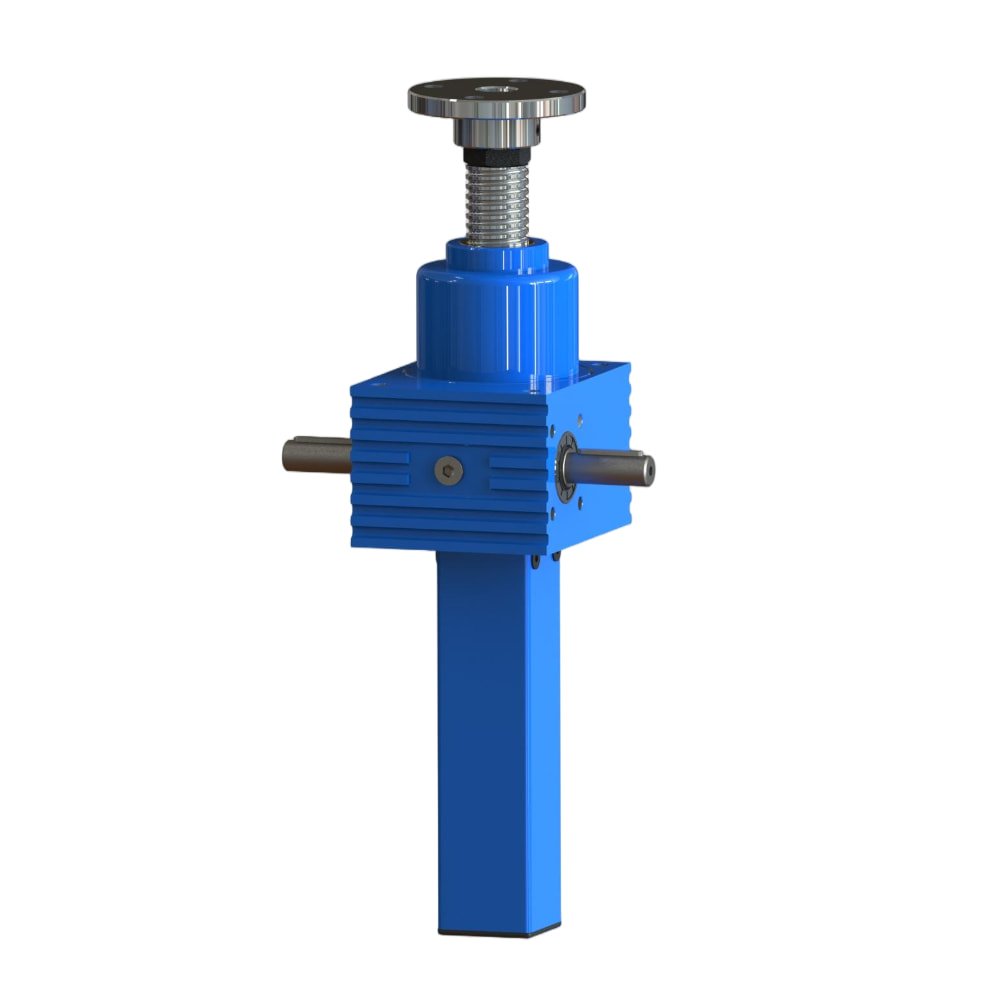

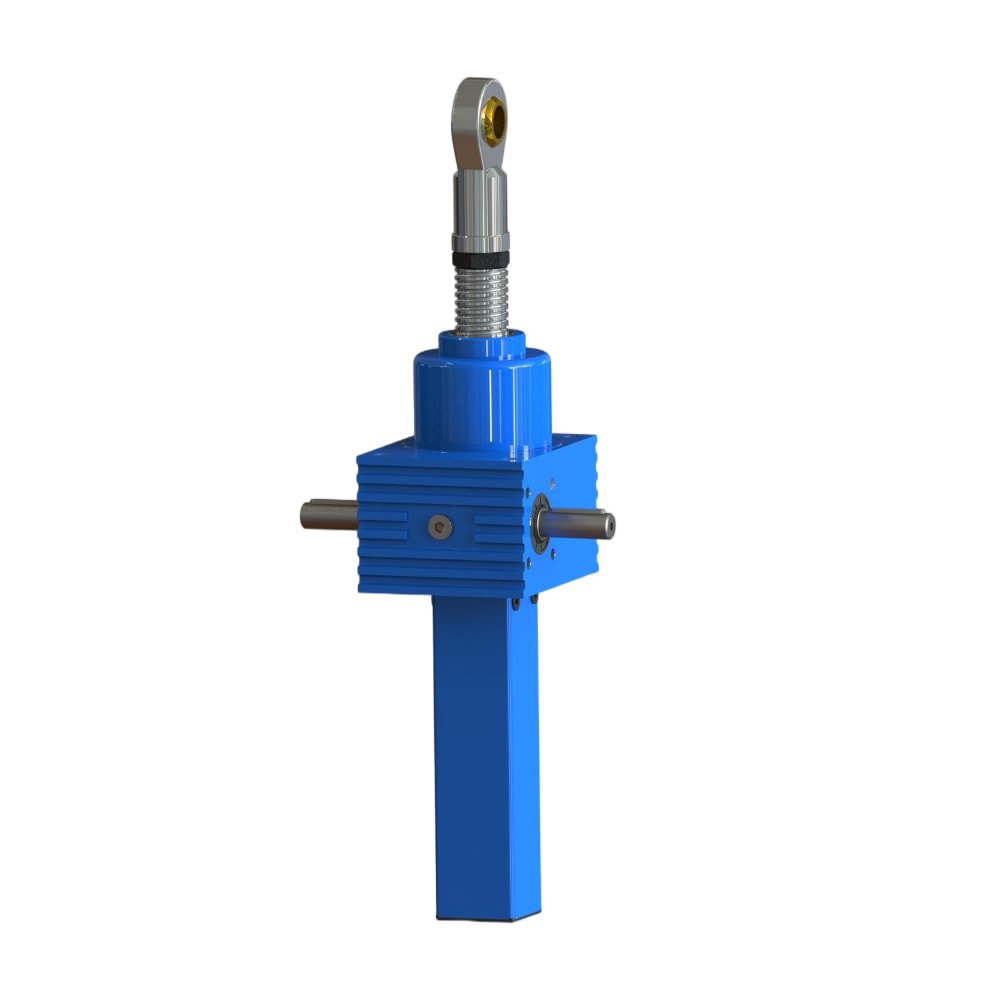

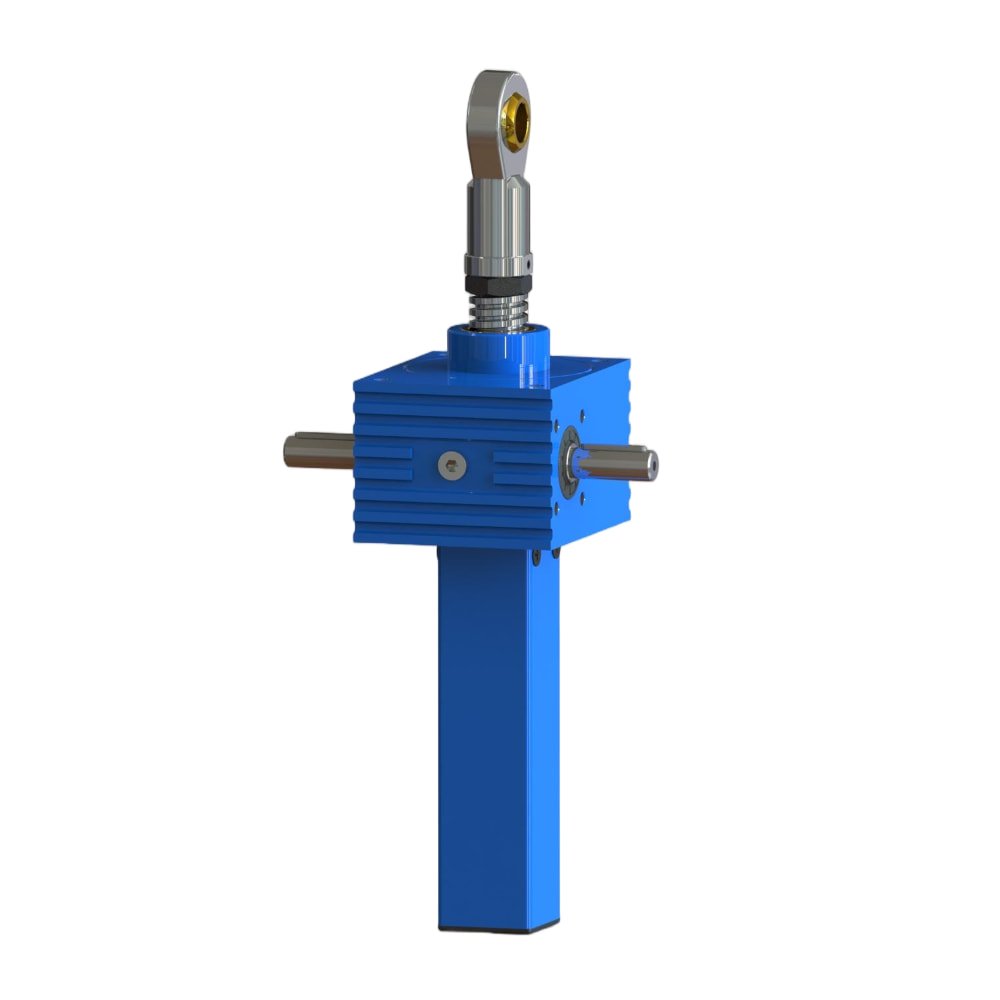

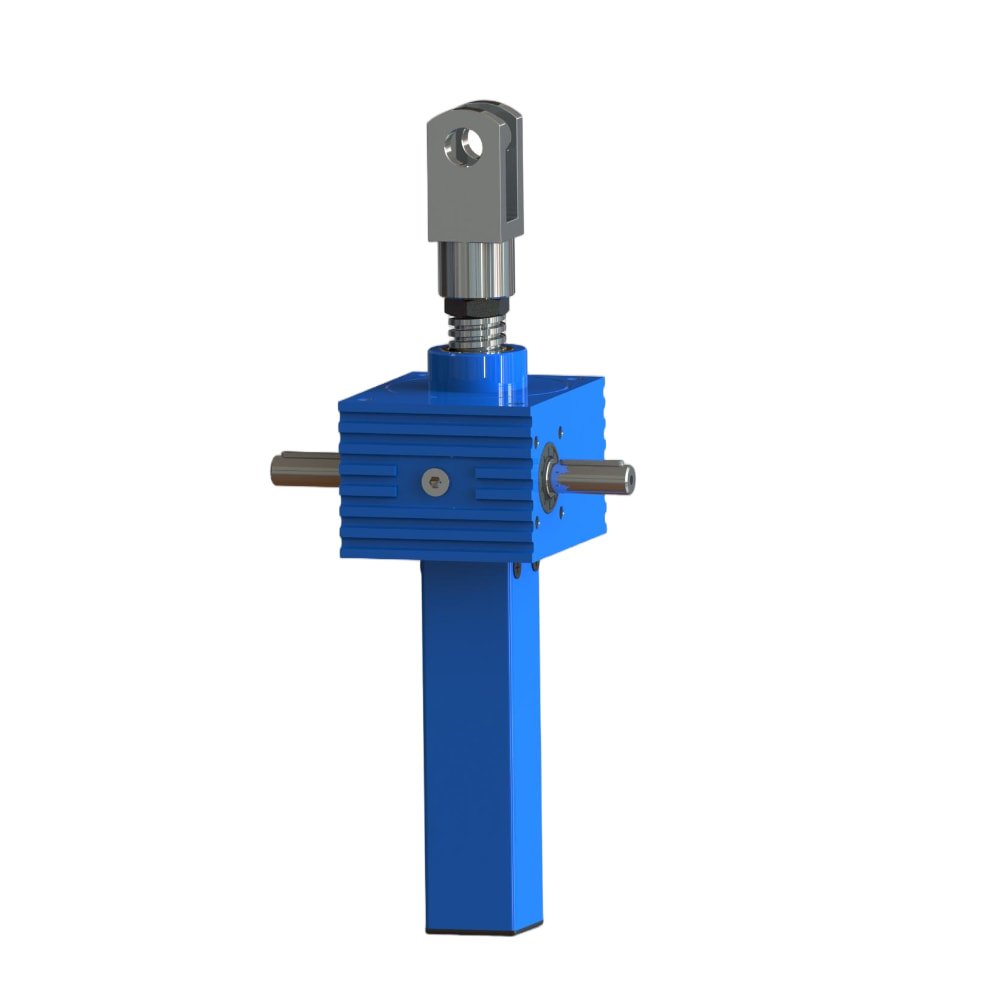

C Series Cubic Screw Jack

Product Detail

High-quality and versatile, LiuDrive C-Series Cubic Screw Jacks are ideal for lifting, lowering, and push/pull applications. The compact cubic housing offers modern aesthetics and mounting flexibility on two faces, eliminating the need for separate upright or inverted variants.

Reliability and Performance
LiuDrive C-Series screw jacks maintain high reliability and precision using the same worm gear set and lead screw as our HSG-Series, SGT-Series, and SHE-Series screw jacks. Cubic screw jacks are widely used mechanical actuators for intermittent duty cycles, delivering precise and positive motion in demanding applications.

System Integration
Available in a range of materials and configurations, LiuDrive screw jacks can be combined into multi-unit systems. Units can be linked mechanically or electrically, with popular arrangements including the ‘H’ and ‘U’ jacking systems. Integration is possible with bevel gearboxes, motors, reduction gearboxes, drive shafts, couplings, plummer blocks, and motion control devices. For mechanically linked systems, assemblies may be self-locking; otherwise, brakes can be added for enhanced safety.

Features

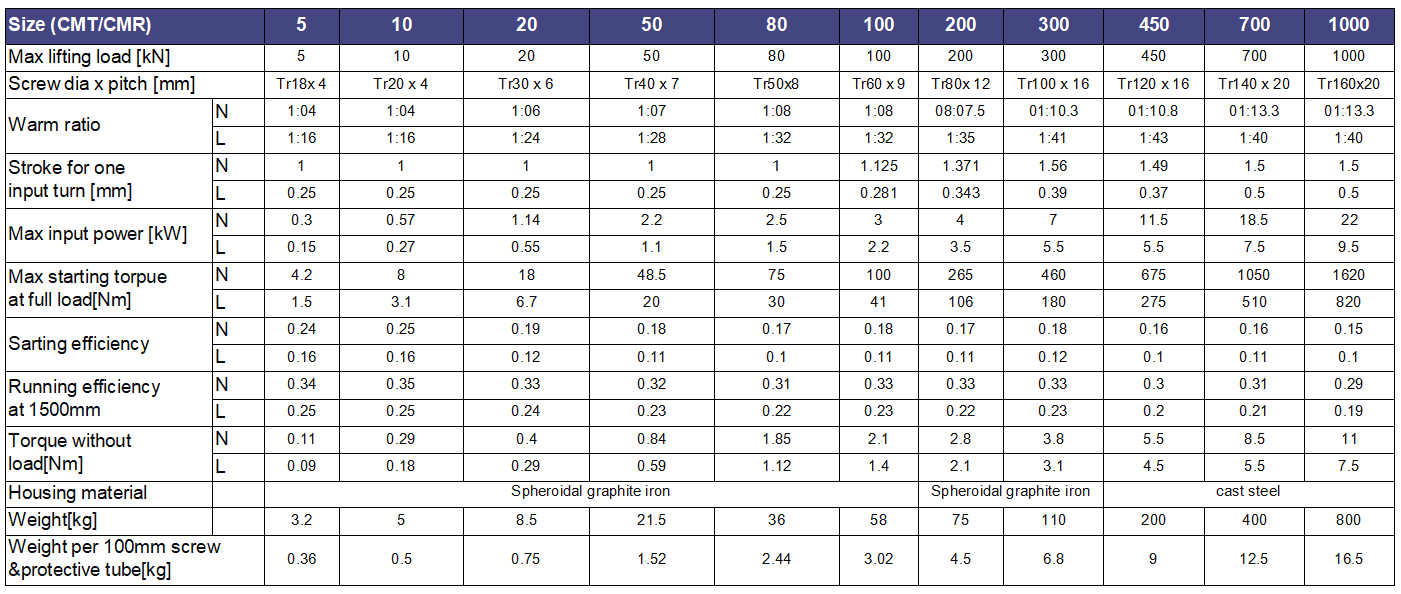

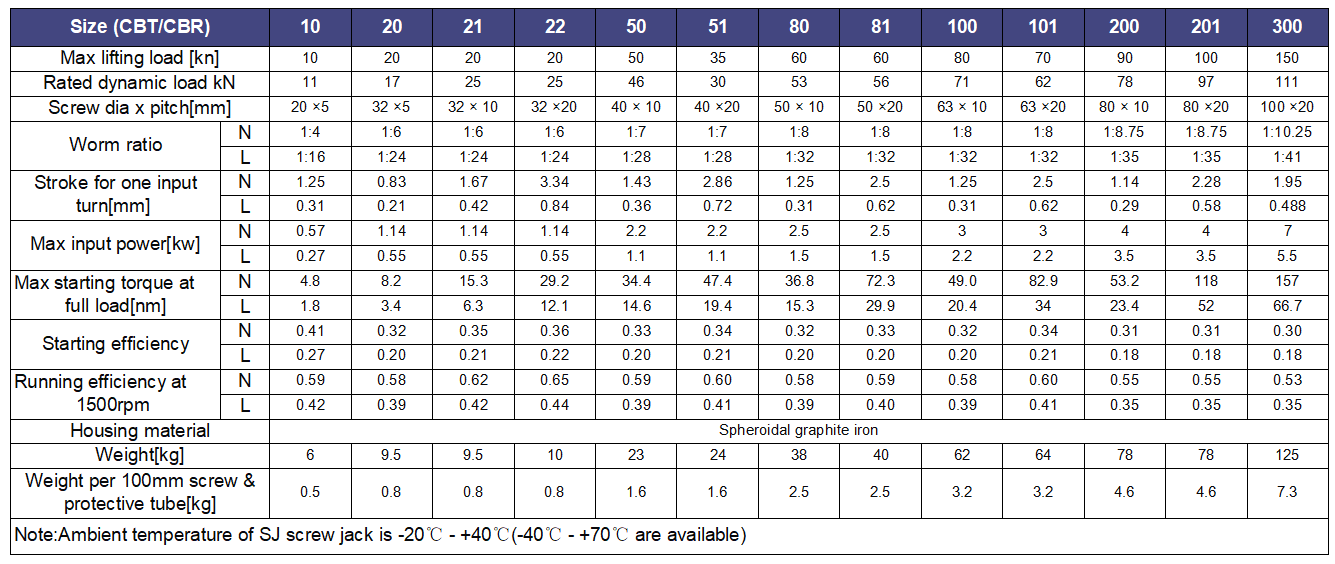

• Cubic Metric Machine Screw Jack types: CMT / CMR / CBT / CBR

• Capacities: 2.5 kN – 1000 kN (standard)

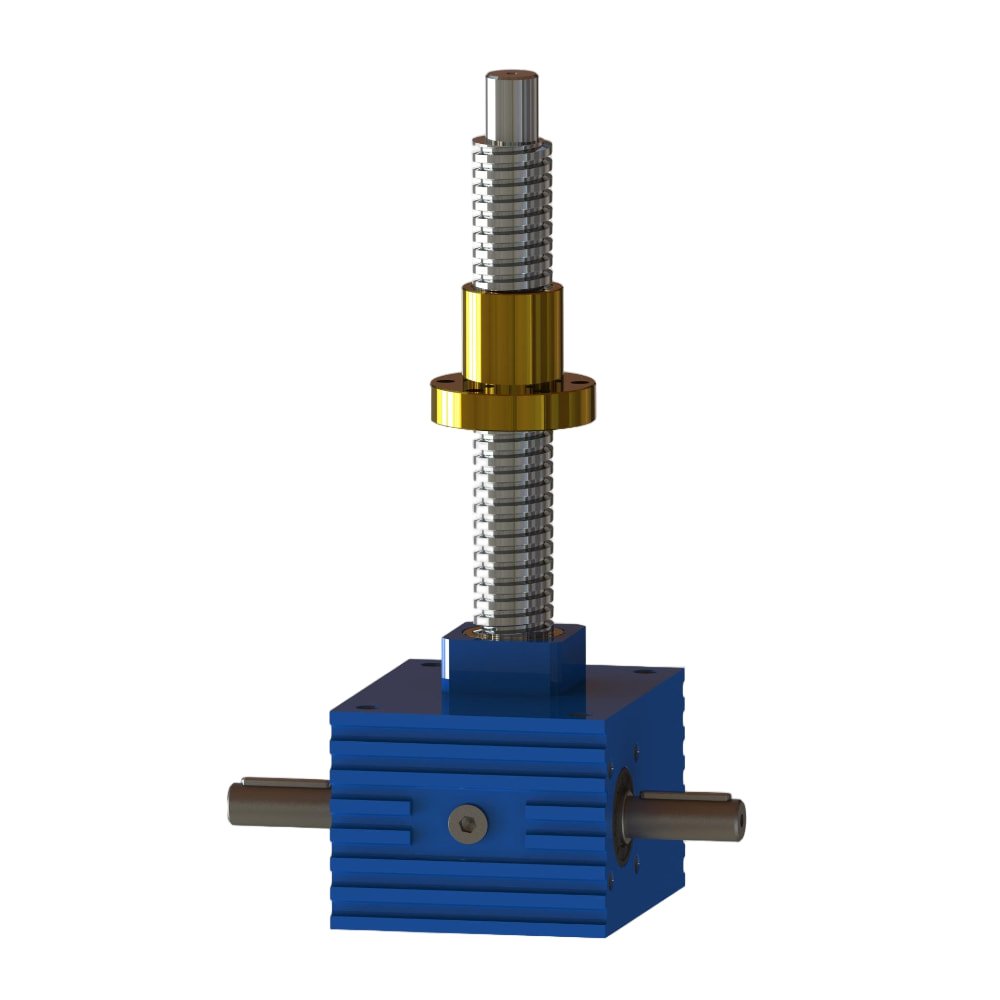

• Translating and Rotating Screw configurations

• Two gear ratios and two screw leads as standard

• Anti-backlash and anti-rotation (keyed) options

• Safety Nut option

• Six mounting options including trunnion
