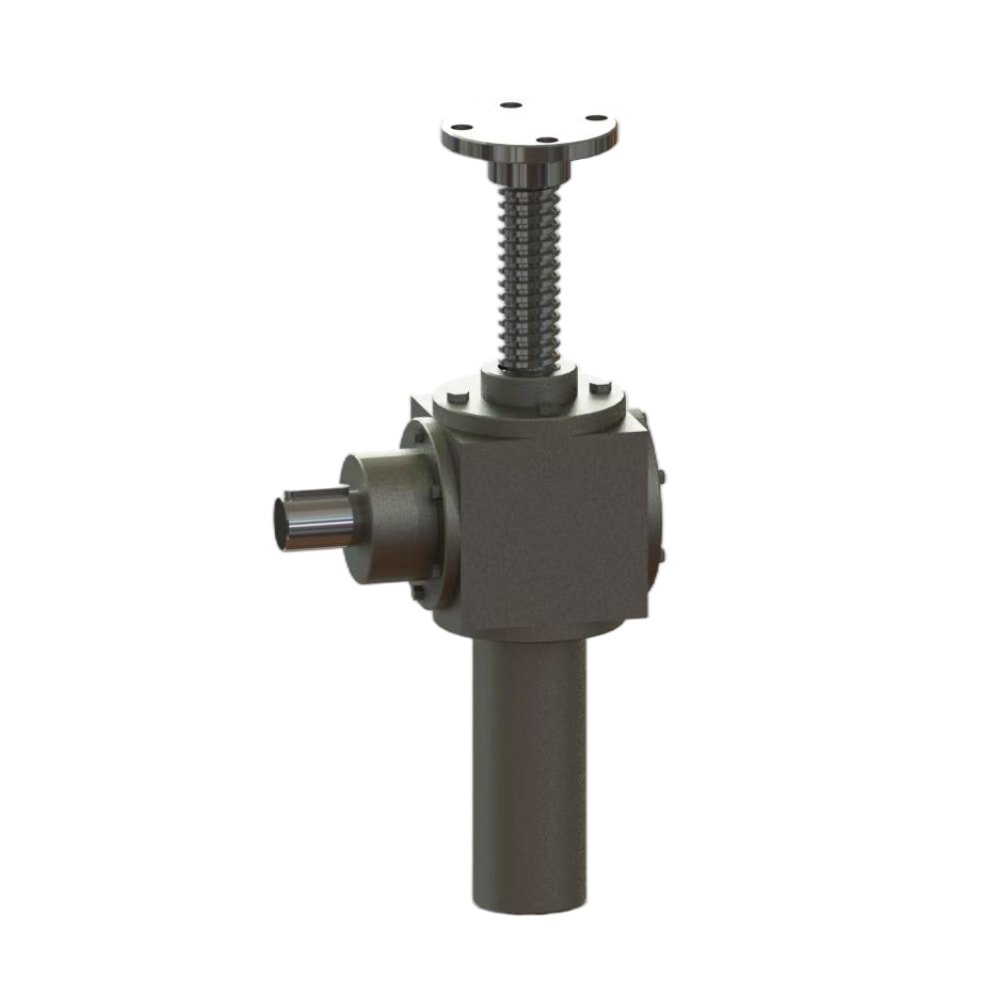

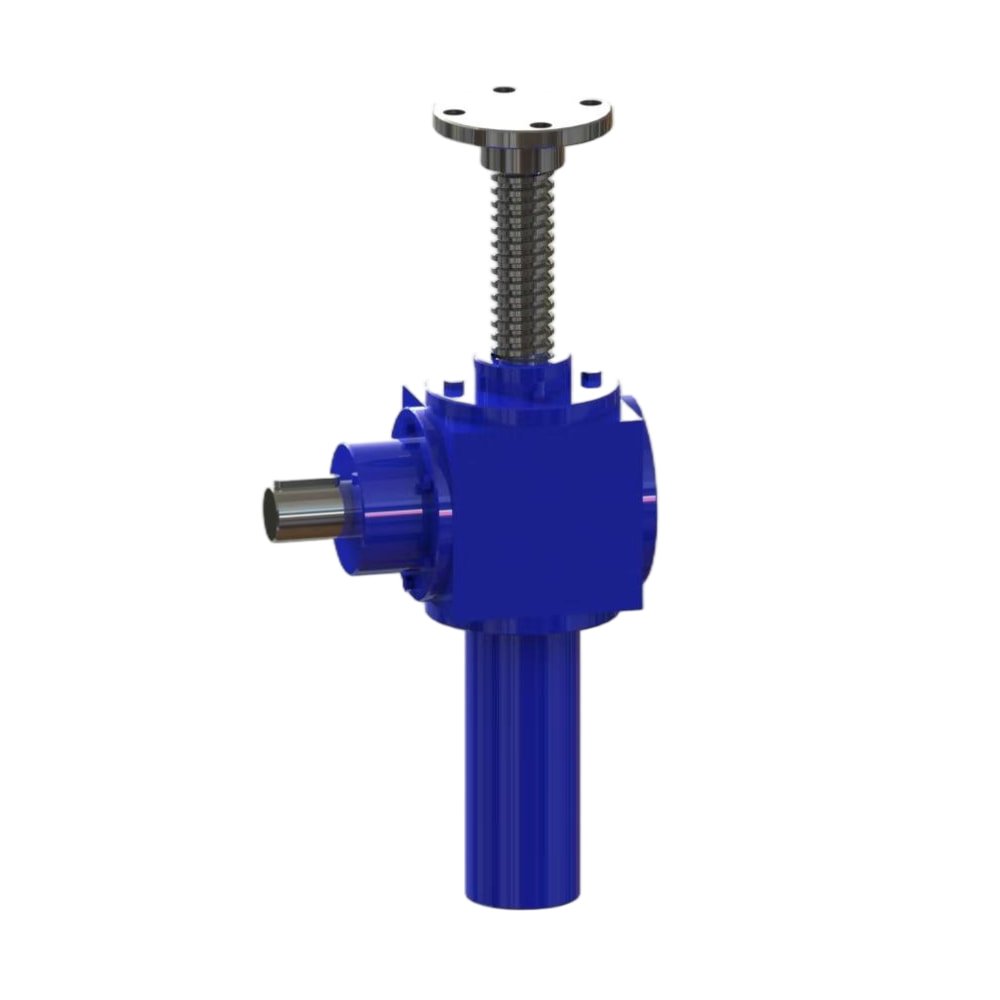

SHG Series Bevel Gear Screw Jack

Load Capacity: 15 kN – 90 kN(standard range)
Housing Material: G-AL / GGG / Cast Steel / Stainless Steel

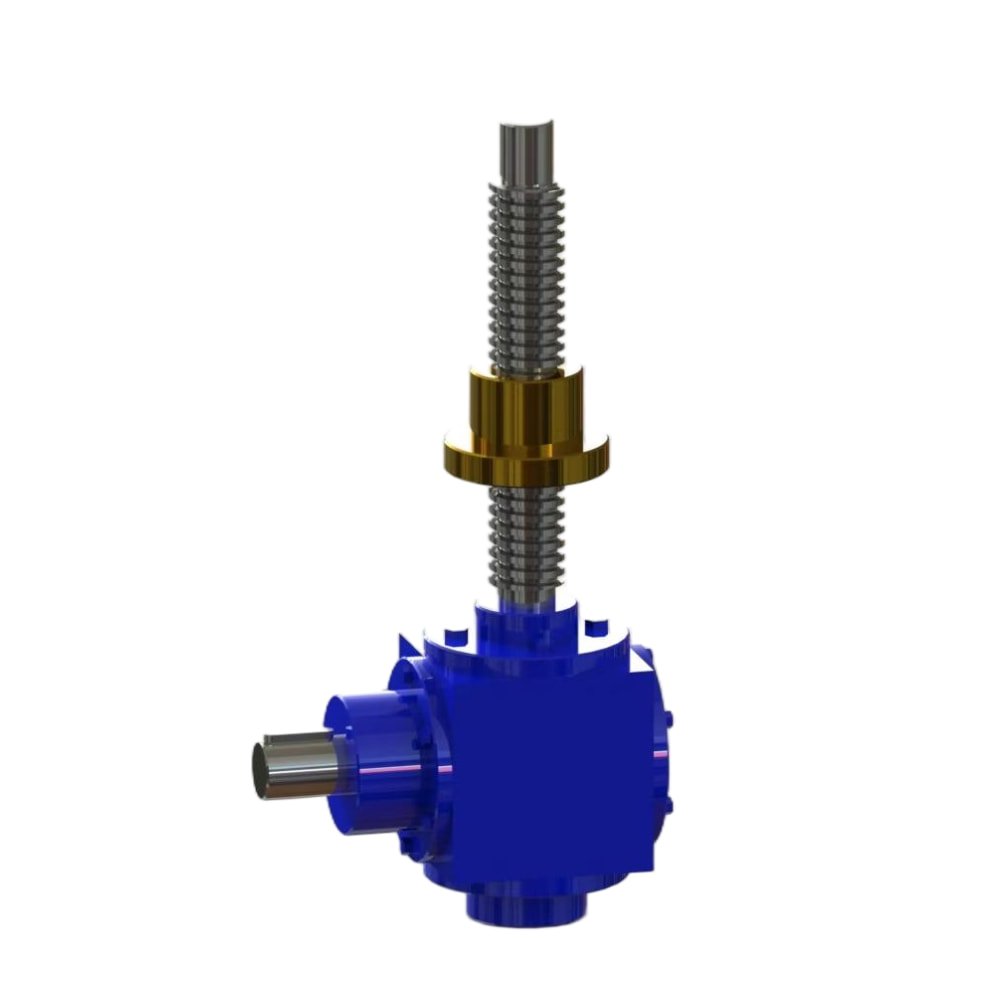

Lead Screw Options:
• Standard (1× Pitch)
• Double Lead (2× Pitch)
• Anti-Rotation (Keyed)
• Stainless Steel
• Left-Hand Thread
• Ball Screw
Custom Designs: Available
Dimensionally Interchangeable with Other Brands: Pfaff
Delivery Time: 15 – 20 Days

Product Detail

The LiuDrive SHG Series Bevel Gear Screw Jacks are designed for dynamic performance, durability, and long service life. Available in four sizes, they cover a load range from 15 kN to 90 kN (1.5 – 9 ton) and are ideal for applications requiring high dynamic loading and extended duty cycles.

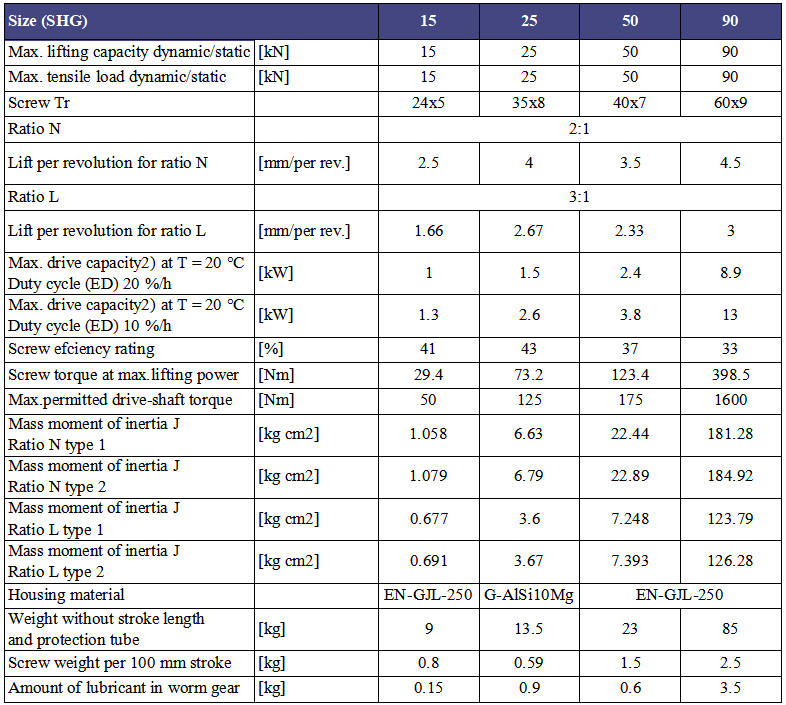

Features:

Lifting Capacities: 15 kN – 90 kN (1.5 – 9 ton)
Drive Speed: Input speeds up to 3000 rpm
Screw Type: Self-locking trapezoidal screw (optional ball screw available)
Lubrication:
- Machine screw with grease lubrication
- Bevel gears with oil-bath lubrication
- Separate lubrication circuits for optimal performance
Bevel Gear Ratios: 2:1 and 3:1 options
Durability: Case-hardened and ground bevel gears and shafts
Efficiency: Helical spiral tooth bevel gears provide high lifting speeds, excellent efficiency, and long service life

The SHG series offers a reliable combination of speed, durability, and dynamic performance, suitable for industries requiring high efficiency and frequent operation.
