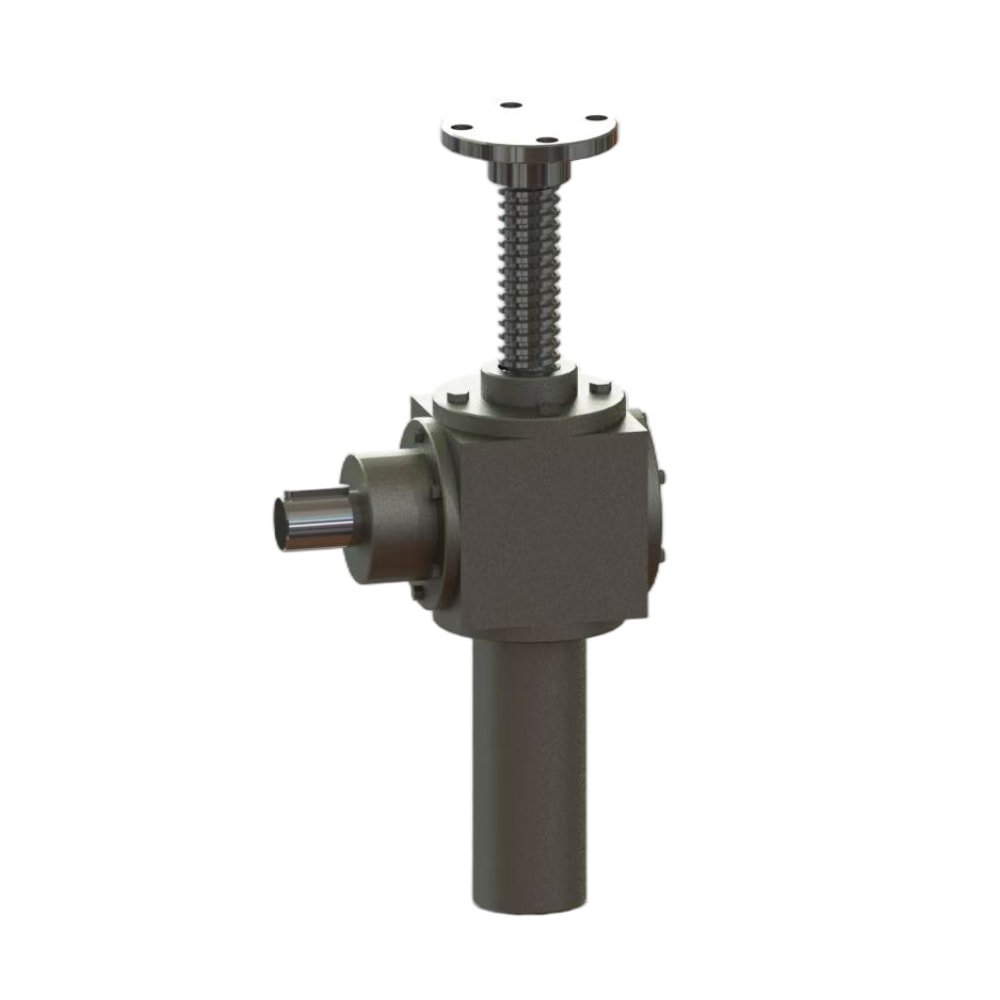

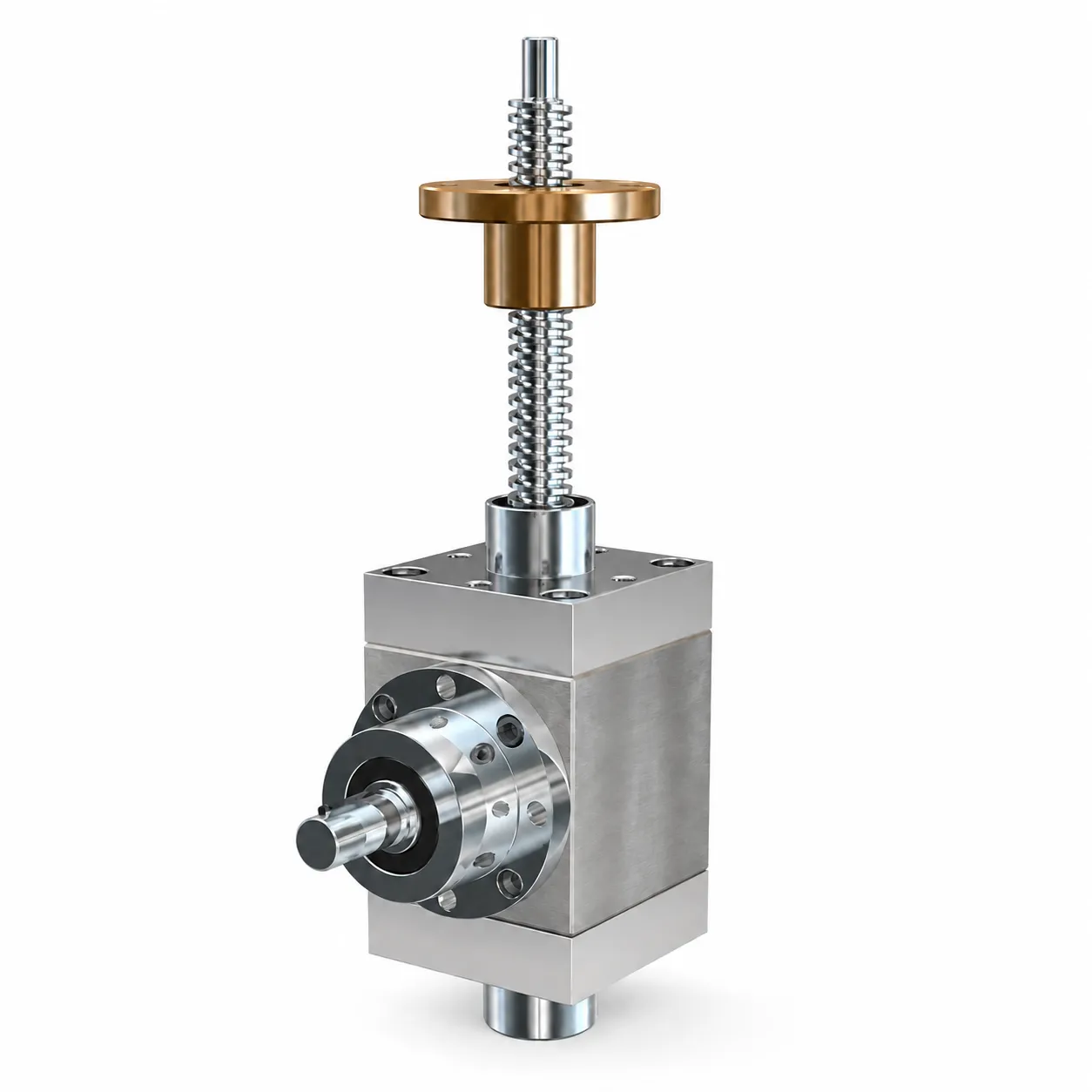

KSH Bevel Gear High Speed Screw Jack

Product Detail

The LiuDrive KSH Bevel Gear High-Speed Screw Jack is a modular system available in three sizes, each offering two gear ratios (2:1 and 3:1). Manufactured with high-quality materials, it is engineered to deliver reliable performance in demanding lifting applications.

Features:

• Sizes: Available in three sizes with two gear ratios (2:1 and 3:1)

• Materials: Gear housings are made of GG 25 grey cast iron; bevel gears are manufactured from high-quality alloy steel and case-hardened for durability

• Bevel Gear Design: Utilizes spiral bevel gears of Klingelnberg form, lapped for precision, ensuring high efficiency and smooth operation

• Efficiency:

  • Ball screw option: Up to 75% efficiency, lifting speeds up to 30 m/min

  • Trapezoidal spindle option: Up to 40% efficiency, lifting speeds up to 13.5 m/min

• Durability: Robust rolling bearings support both the input shaft and lifting spindle, ensuring long service life with minimal maintenance

• Modular Design: All drive components are compatible, providing flexibility for a wide range of applications

Additional Information:

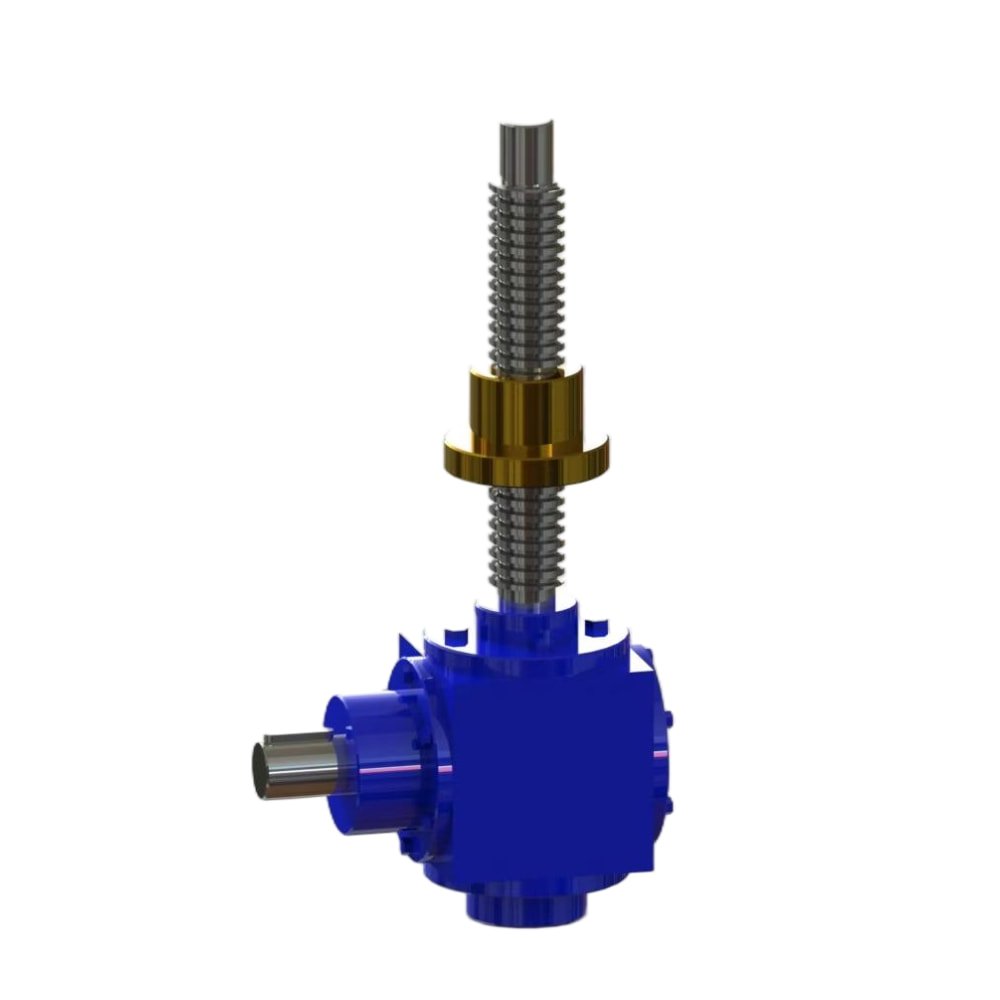

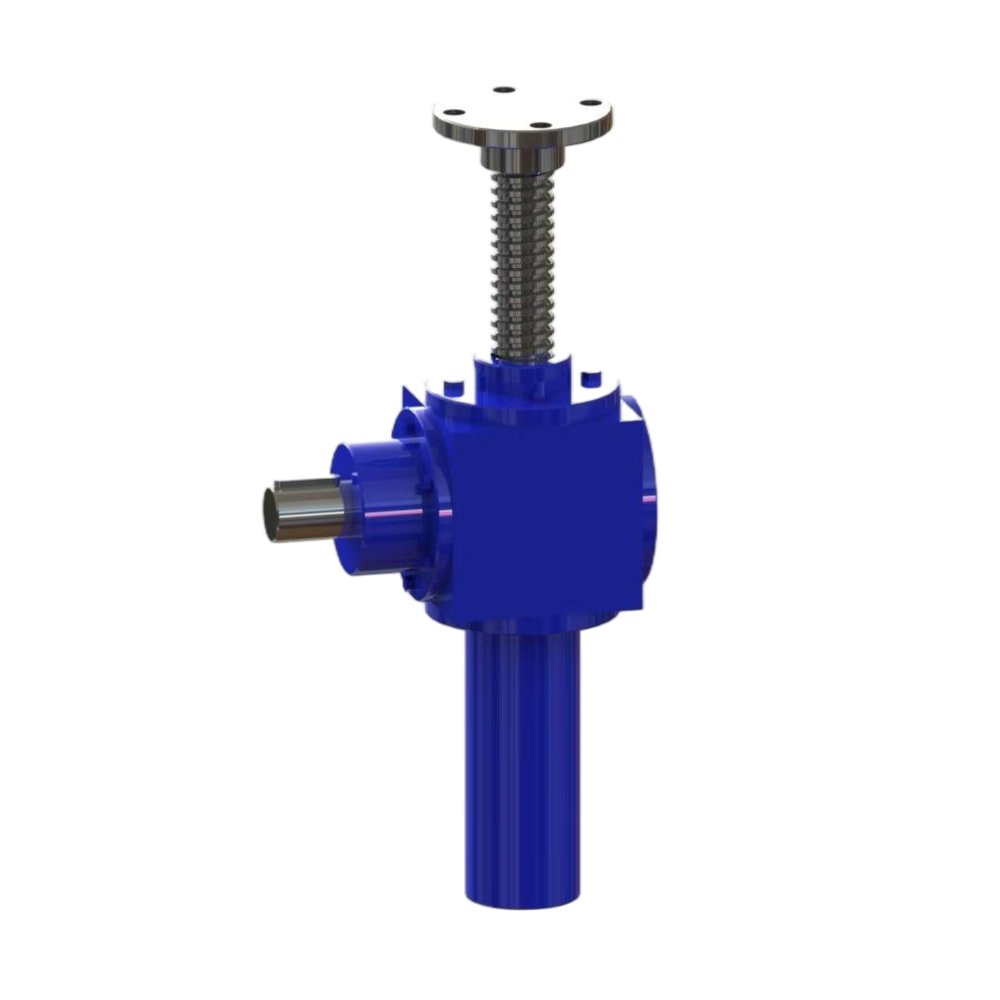

• Available with both rotating and translating spindle versions

• Compatible with trapezoidal and ball screw spindles

• Flanged nut dimensions conform to DIN 69051 for ball screws

• Comprehensive range of accessories available to meet specific application requirements
