740U Center Pivot Wheel Gearbox (UMC Replacement)

Product Overview

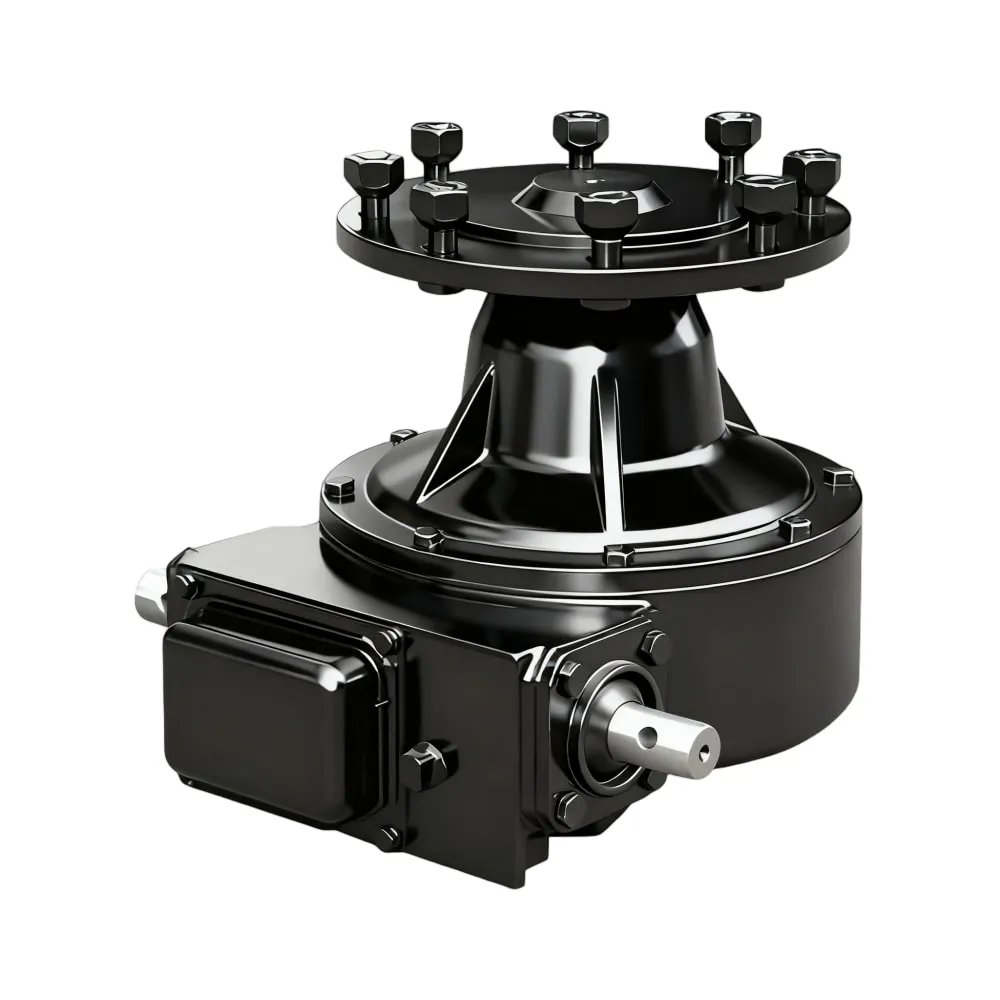

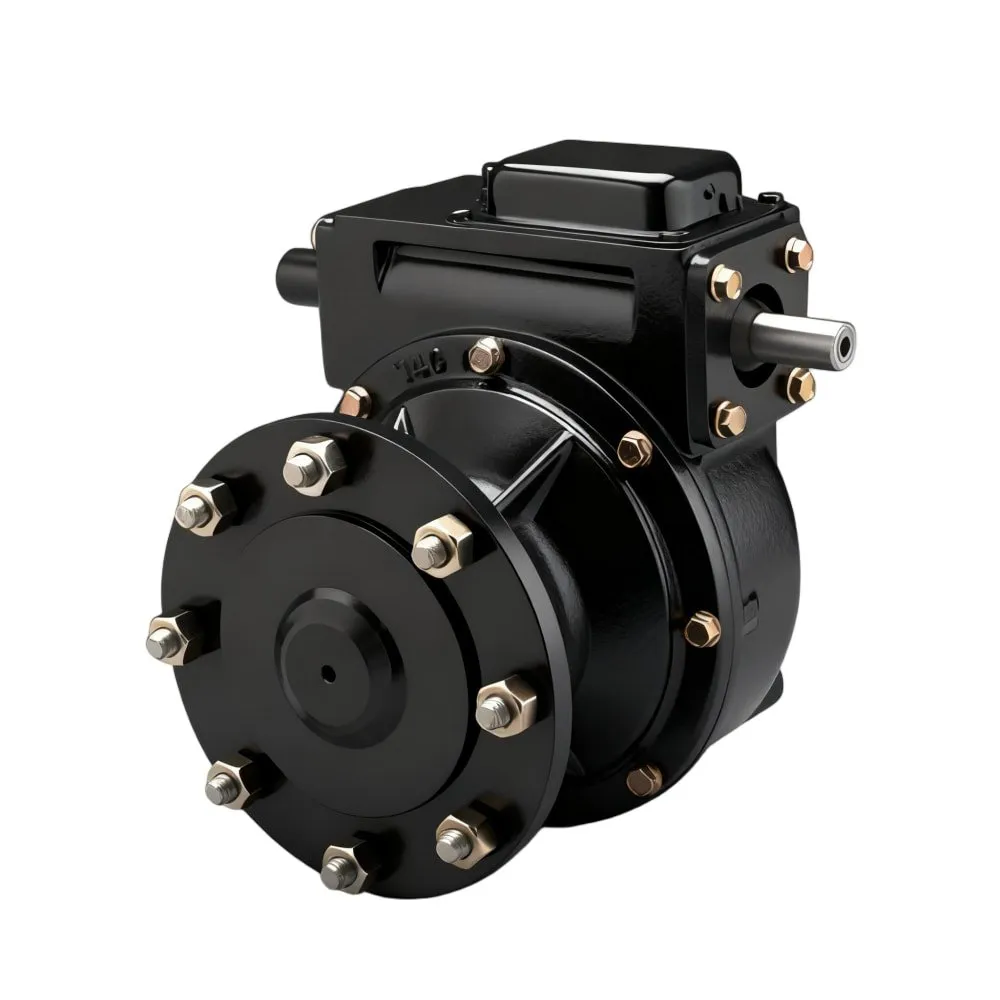

The LiuDrive 740U Center Pivot Wheel Gearbox is a direct replacement for the UMC 740U final drive. It features a 50:1 gear ratio, a steel worm gear, and a cast iron bull gear. Built for precise 1:1 interchangeability, it is equipped with a 2.25″ diameter steel output shaft and large input bearings.

Features:

• 2.25″ diameter steel output shaft
• 50:1 gear ratio
• Cartridge input and output seals
• Large input bearings
• Full cycle external expansion chamber with stainless steel cover
• 11-Bolt mounting pattern
• External seal protectors for input and output seals
• Top oil fill plug
• Filled with extreme pressure gear oil
• Dual ended input shaft with a hub cap for the unused end
• Positive wheel register
