Center pivot irrigation systems rely on a drivetrain that moves irrigation towers slowly and consistently across large agricultural fields. At the core of this drivetrain are irrigation gearboxes, center drive motors, and drive couplers, which work together to convert electrical power into controlled mechanical movement.
Understanding how these components function helps farmers, irrigation service providers, and distributors select reliable replacement parts and maintain stable system operation.

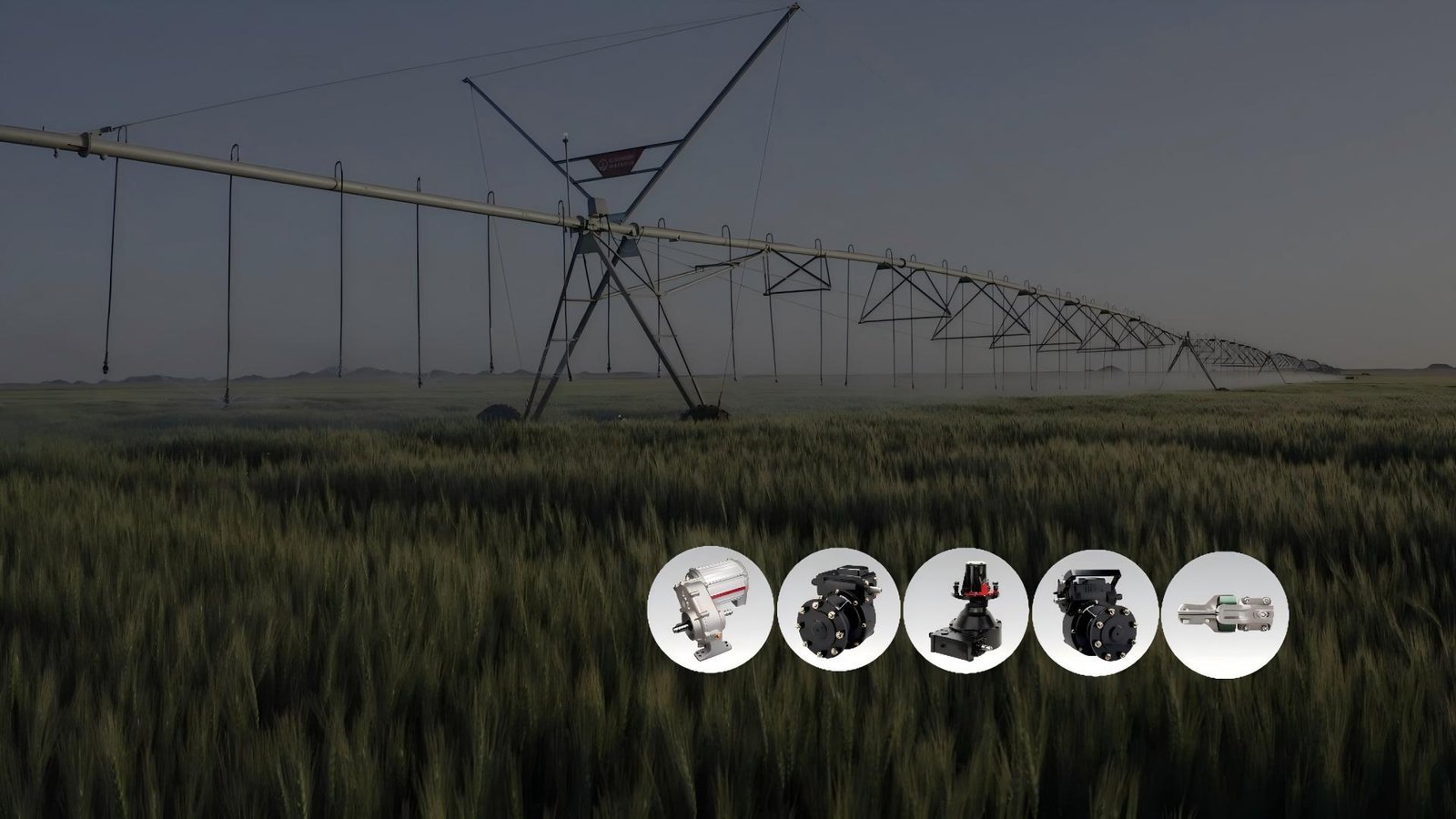

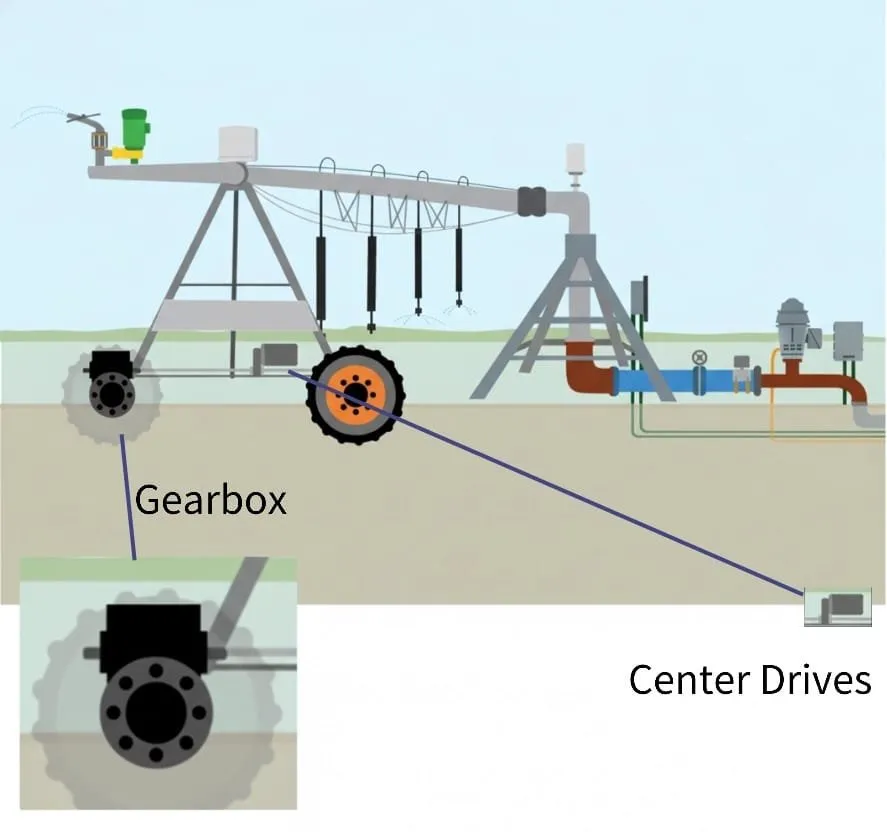

The Drivetrain Structure of a Center Pivot Irrigation System
A center pivot irrigation tower moves through a simple but durable drivetrain system. The power flow typically follows this sequence:
Electric Motor → Center Drive → Coupler → Wheel Gearbox → Drive Wheel
Each component performs a specific function.

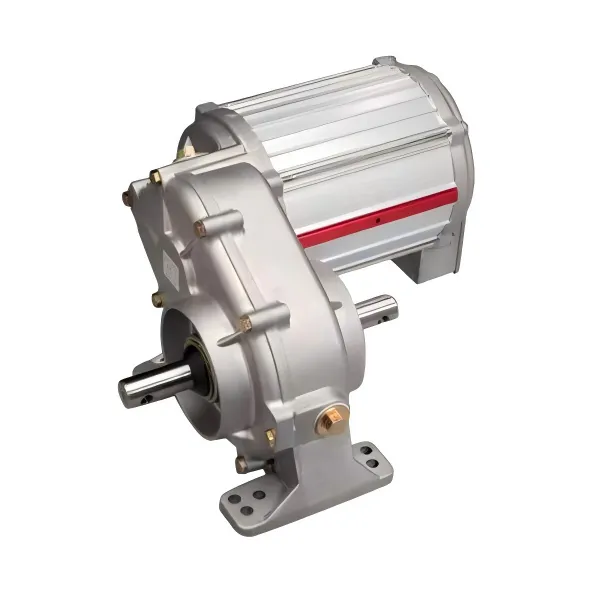

Center Drive Motor
The center drive motor provides the initial rotational power for the drivetrain. These motors are designed for outdoor agricultural environments and are typically equipped with weather-resistant housings suitable for irrigation conditions.
Center drives often use aluminum alloy housings, which help reduce weight while maintaining durability in field environments.

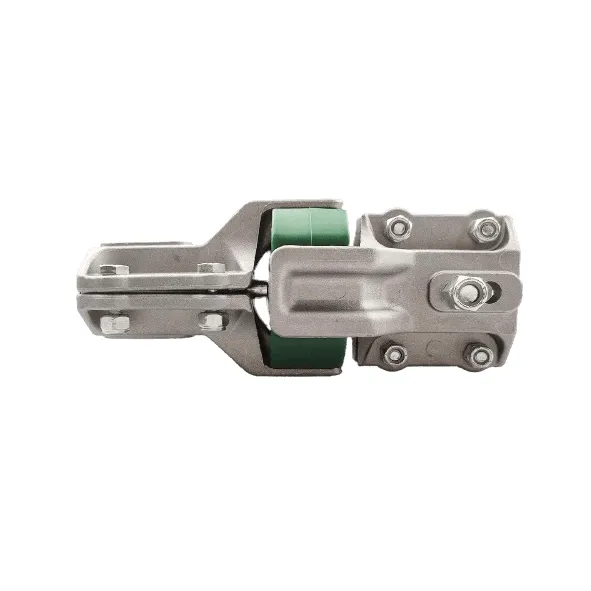

Drive Coupler
The drive coupler connects the motor shaft to the gearbox input shaft in a center pivot drivetrain.
It transmits torque while allowing slight alignment flexibility between components.
Most pivot drive couplers are die-cast aluminum alloy components designed not only for power transmission but also for drivetrain protection.
During normal operation, the coupler transfers torque from the motor to the gearbox. However, if the irrigation tower encounters an obstruction, becomes stuck, or experiences abnormal overload conditions, the coupler is designed to fail at a predetermined torque level.
This controlled failure disconnects the drivetrain and stops the tower movement, preventing further damage.
By sacrificing the coupler, the system helps protect:
- the center drive gearbox
- the electric motor
- other drivetrain components
This simple but critical safety function helps ensure reliable and safe operation of center pivot irrigation systems.

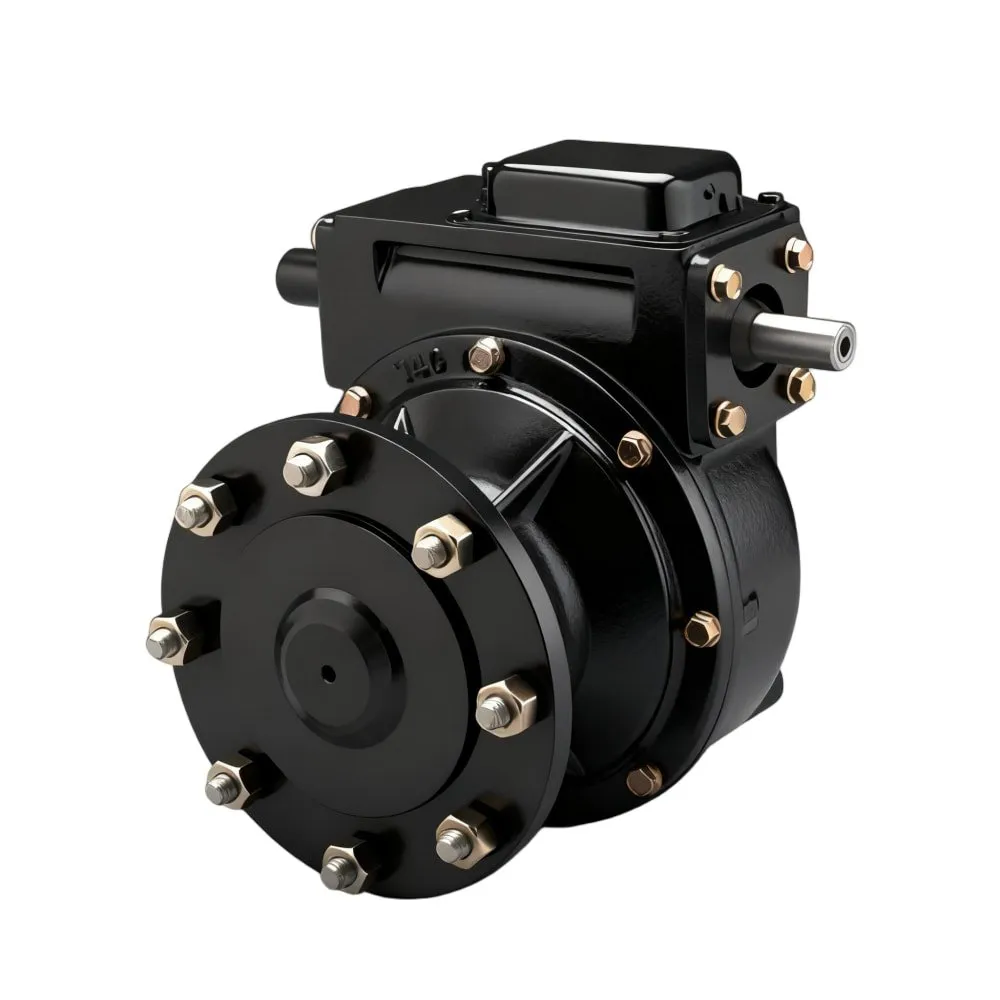

Wheel Gearbox
The wheel gearbox converts motor rotation into high torque at low speed, allowing the irrigation tower wheels to move slowly and consistently.
Wheel gearboxes are critical for maintaining synchronized movement across multiple irrigation towers.
Inside a Center Pivot Irrigation Gearbox
Center pivot gearboxes typically use a worm gear reduction mechanism to achieve high torque output and stable motion.
The internal structure commonly includes:
- Hardened alloy steel worm shaft
- Ductile iron worm wheel
- Heavy-duty bearings
- Oil-filled gearbox housing
The gearbox housing is usually cast iron, which provides the structural strength required for agricultural loads and continuous outdoor operation.
Oil lubrication ensures that gears and bearings operate smoothly during long irrigation cycles.
Why Worm Gear Reduction is Used in Pivot Irrigation Systems
Worm gear reduction offers several advantages for irrigation equipment:
High Torque Output
Pivot systems move slowly but carry significant structural load across long irrigation spans. Worm gear reduction provides the torque multiplication necessary to move the system reliably.
Smooth, Controlled Motion
Irrigation towers must move at a consistent speed to maintain proper water distribution. Worm gear systems allow controlled low-speed operation.
Durable Agricultural Operation
Worm gear systems perform well in dusty, wet, and outdoor environments, making them suitable for long agricultural duty cycles.
Common Gearbox Models Used in Pivot Irrigation Systems
Many center pivot systems use drivetrain configurations similar to the following gearbox types commonly found in irrigation equipment:
- 740U / 740UV style gearboxes
- 7786 / 7824 style gearboxes
- 50:1 and 52:1 ratio wheel gearboxes
These gearboxes are widely used in pivot systems across agricultural markets due to their reliability and simple mechanical structure.
Center Drive Motors in Pivot Irrigation Systems
The center drive motor provides the rotational power required for the irrigation drivetrain.
Typical characteristics include:
- Weather-resistant motor design
- Compatibility with common agricultural power supplies
- Stable operation during long irrigation cycles
The motor connects directly to the gearbox through a coupler, forming the main drive assembly that powers each irrigation tower.
Maintaining Irrigation Gearboxes for Long-Term Operation
Reliable drivetrain operation depends on regular inspection and maintenance.
Key maintenance practices include:
Oil Inspection
Oil-filled gearboxes should be inspected periodically to ensure lubrication remains sufficient and uncontaminated.
Alignment Checks
Misalignment between the motor, coupler, and gearbox can increase stress on drivetrain components.
Visual Inspection
Regular inspection helps detect early signs of wear, oil leakage, or bearing issues before they affect system operation.
Consistent maintenance helps extend gearbox service life and maintain stable irrigation performance.
Replacement Options for Pivot Irrigation Gearboxes
Because many irrigation systems use standardized drivetrain configurations, replacement gearboxes and center drives can often be installed as compatible alternatives to existing components.
This allows distributors and irrigation service providers to maintain equipment without relying solely on original equipment supply.
Reliable replacement parts are particularly important during peak irrigation seasons when downtime must be minimized.
Bulk Supply for Irrigation Equipment Distributors

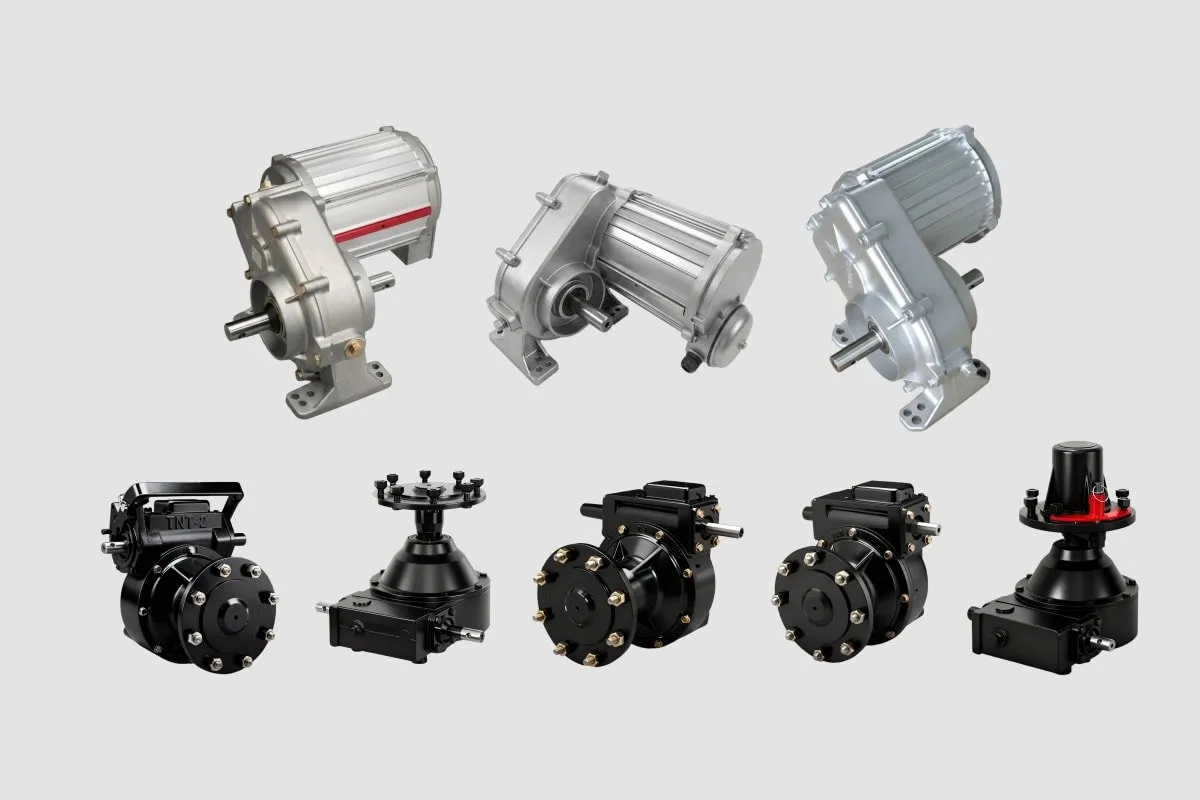

LiuDrive manufactures and supplies drivetrain components used in center pivot irrigation systems, including:
- Wheel gearboxes
- Center drive motors
- Drive couplers
Our components are designed to work with common drivetrain configurations used in many pivot irrigation systems.
For irrigation equipment distributors and service providers, we support:
- Bulk supply for seasonal demand
- Stable long-term production
- Component supply for local assembly
With 39 years of manufacturing experience in power transmission systems, LiuDrive focuses on providing reliable mechanical components for global agricultural equipment markets.
Conclusion
Center pivot irrigation systems depend on a reliable drivetrain composed of center drives, couplers, and wheel gearboxes. These components convert motor power into controlled movement, allowing irrigation towers to operate efficiently across large agricultural fields.
Understanding how these drivetrain components work helps operators maintain irrigation systems, reduce downtime, and select reliable replacement parts when needed.
