Introduction
For distributors supplying the center pivot irrigation market, drivetrain components — wheel gearboxes and center drives — are among the highest-demand replacement parts in the field. These components operate in harsh outdoor conditions year-round, and when they fail, growers need a reliable source of fit-verified replacements fast.

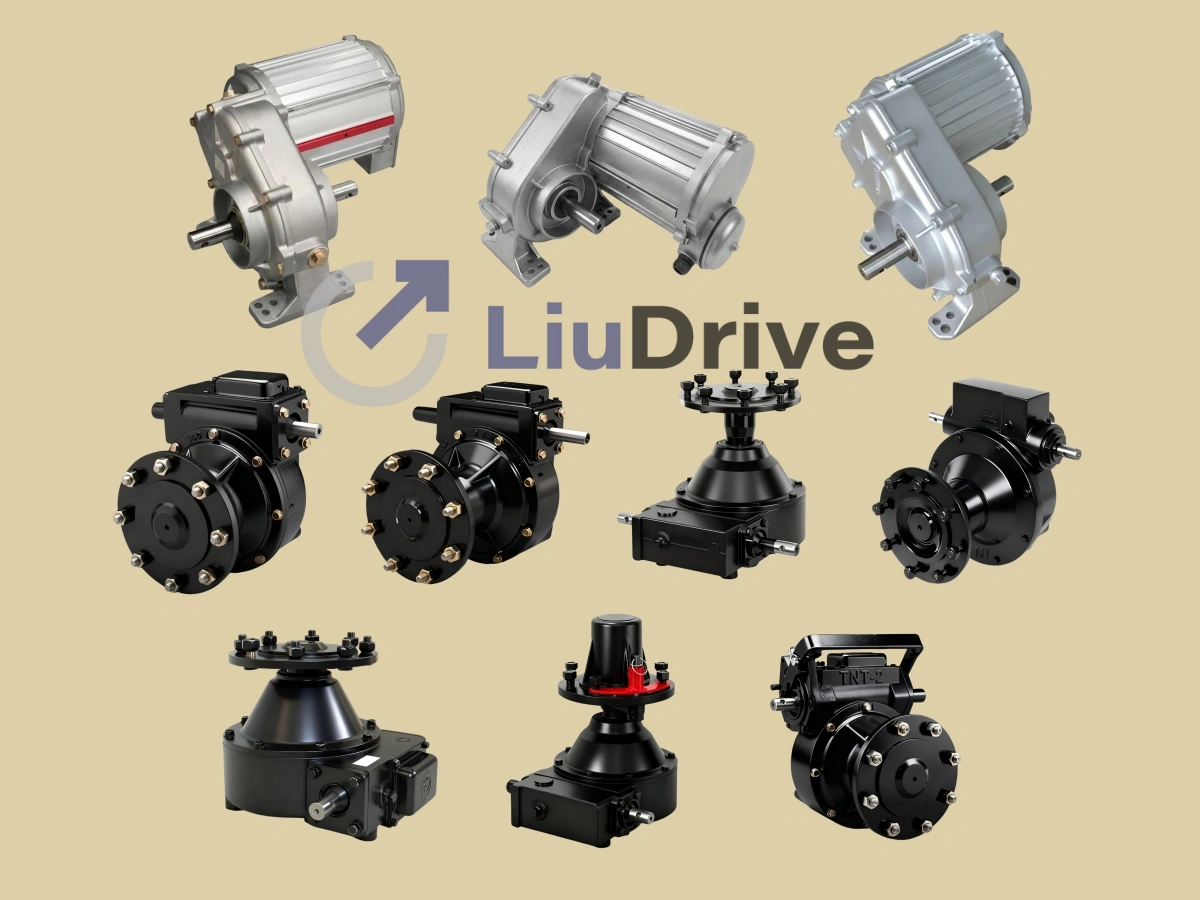

LiuDrive manufactures center pivot wheel gearboxes and center drive gearmotors as direct aftermarket replacements for the leading irrigation powertrain brands: UMC, Durst, Omni, ICII, Valley, and Zimmatic. Every unit is fit-verified, batch-consistent, and available for bulk supply with 3–15 day dispatch.
This guide covers which brand models we replace, which pivot systems each unit is compatible with, and what distributors need to know before placing a supply order.
👉 Browse Our Irrigation Powertrain Range
How Center Pivot Irrigation Drivetrain Works
A center pivot irrigation system moves water across a field by rotating a long span of pipe around a fixed center point. Each tower in the span is driven by its own wheel gearbox (final drive) — a worm gear unit that converts input shaft rotation from the driveline into wheel movement. The entire span is coordinated by a center drive gearmotor at the pivot point, which acts as the primary drive unit controlling span speed and direction.
Two key component categories:
Wheel Gearboxes (Final Drives) Mounted at each tower wheel. Worm gear design, typically 50:1 or 52:1 ratio. The 50:1 ratio is standard for most systems (Zimmatic, Reinke, Lockwood, Olson, Pierce); 52:1 is used where positive wheel offset is required (Valley-style systems). Output shaft diameter is typically 2.25″ (57mm). Housing is cast iron or ductile iron with dual input shafts for universal left/right installation.
Center Drive Gearmotors Mounted at the pivot center. Integrated motor and gearbox unit. Helical gear reduction, typically 20:1 to 60:1 ratio. Motor power options range from 0.6 HP to 1.5 HP depending on span length and soil conditions. Designed for 24/7 seasonal operation and must handle variable load, moisture, and crop debris.
Wheel Gearbox Replacements by Brand
UMC Wheel Gearbox Replacements
UMC (Universal Motion Components) is the market leader in center pivot wheel gearboxes, supplying OEM drivetrain to Reinke, Lindsay/Zimmatic, and through their own distribution channel. Their 740 series and TNT series are the most widely installed gearboxes in the global market.
LiuDrive aftermarket replacements for UMC wheel gearboxes:
740-U (50:1) The industry-standard ultimate duty gearbox. Designed for longer spans, larger wheels, and heavier towers. Features a 2.25″ output shaft, large input bearings, and cartridge seals on both input and output shafts. Compatible with virtually every center pivot brand running standard 50:1 specifications.
- LiuDrive model: 740U | Ratio: 50:1 | Weight: 51 kg | Fit verified
740-UV (52:1) The 52:1 variant of the 740 series, designed for systems with positive offset wheels and longer span configurations. Extended output shaft. Ductile iron input shaft with 25° pressure angle. Widely used on Valley-compatible systems.
- LiuDrive model: 740UV | Ratio: 52:1 | Weight: 54 kg | Fit verified
TNT-2-U / TNT-U (50:1 Towable) UMC’s patented towable gearbox for pivot systems that need to move between fields. Features a disengageable worm gear allowing the output shaft to rotate freely for towing. Standard 50:1 ratio.
- LiuDrive model: TNT2U | Ratio: 50:1 | Weight: 55 kg | Fit verified
TNT-2-UV / TNT-UV (52:1 Towable) 52:1 towable version. Extended output shaft. Designed for towable center pivots and lateral/linear systems with positive offset wheels.
- LiuDrive model: TNT2UV | Ratio: 52:1 | Weight: 57 kg | Fit verified
Not sure which UMC model your customer is running? Send us the unit or nameplate photo — we identify the correct replacement within 24 hours.
Durst Wheel Gearbox Replacements
Durst developed the original enclosed wheel drive gearbox for center pivot irrigation and remains one of the most recognized names in the market. Their A1339 series is the standard design, featuring the industry’s largest air expansion chamber (42 cubic inches), dual input shafts, and cartridge seals on both shafts.
Durst gearboxes are manufactured to two primary specifications:
- 50:1 — compatible with Zimmatic, Reinke, Lockwood, Olson, Pierce systems
- 52:1 — direct replacement for Valley wheel gearboxes
LiuDrive aftermarket replacements for Durst wheel gearboxes:
A1339-7786 (52:1 — Valley compatible) The most commonly requested Durst replacement. 52:1 ratio, designed as a direct fit for Valley irrigation systems. Ductile iron housing, dual input shafts, cartridge seals.
- LiuDrive model: A1339-7786 | Ratio: 52:1 | Weight: 53 kg | Fit verified
V1339-7830 (52:1 — Valley compatible, large chamber) 52:1 Valley-compatible unit with larger housing and expanded oil chamber for higher-load applications.
- LiuDrive model: V1339-7830 | Ratio: 52:1 | Weight: 60 kg | Fit verified
A1339-7824T (50:1 Towable) Towable variant with bolt-on towable hub pre-installed. 50:1 ratio, compatible with Zimmatic, Reinke, and other standard systems.
- LiuDrive model: A1339-7824T | Ratio: 50:1 | Weight: 57 kg | Fit verified
Additional Durst models available on request. Contact us with the Durst part number for confirmation.
Omni Gear Wheel Gearbox Replacements
Omni Gear produces three worm gear wheel drive models for center pivot irrigation, covering standard, Valley-style, and heavy-duty applications. Their OFD series is widely used as OEM supply to Valmont (Valley) systems.
LiuDrive aftermarket replacements for Omni Gear wheel gearboxes:
OFD-50-G2 (50:1 — Standard, bellows-type) Omni’s standard worm gear wheel drive. Bellows-type expansion system. 50:1 ratio, compatible with Zimmatic, Reinke, Lockwood, Olson, and Pierce systems.
- LiuDrive model: OFD-50-G2 | Ratio: 50:1 | Weight: 48 kg | Fit verified
OFD-52-V (52:1 — Valley-style, big chamber) Big chamber style. 52:1 ratio, designed for Valley pivot systems with positive offset wheels.
- Available on request | Ratio: 52:1 | Contact us to confirm
OFD-50-HD (50:1 — Heavy Duty, bellows-type) Heavy duty variant of the OFD-50-G2 for high load and high annual hour applications.
- Available on request | Ratio: 50:1 | Contact us to confirm
ICII Wheel Gearbox Replacements
ICII Gears (Irrigation Components International) produces wheel gearboxes and gearmotors for the aftermarket, with a strong presence in the Middle East and export markets. Their wheel drives are dimensionally compatible with standard pivot systems.
LiuDrive aftermarket replacements for ICII:
- Standard 50:1 worm gear wheel drive — compatible with Zimmatic, Reinke, and other standard systems
- Additional ICII configurations available on request
Send us the ICII model number or unit photo for a same-day compatibility confirmation.
Zimmatic / Valley / Lindsay Wheel Gearbox Replacements
Valley (Valmont Industries) and Zimmatic (Lindsay Corporation) are the two largest center pivot system manufacturers in the world, and their pivot systems each use a specific wheel gearbox specification:
- Valley systems use a 52:1 ratio wheel gearbox (positive offset wheel design)
- Zimmatic / Lindsay systems use a 50:1 ratio wheel gearbox
LiuDrive’s AT Gearbox is a fit-verified aftermarket replacement for Zimmatic wheel drives.
- LiuDrive model: AT Gearbox | Ratio: 50:1 | Weight: 51 kg | Fit verified
For Valley 52:1 applications, the A1339-7786 (Durst-compatible) and 740-UV (UMC-compatible) both serve as direct replacements.
Center Drive Gearmotor Replacements by Brand
Center drive gearmotors are the most technically complex component in the pivot drivetrain. Compatibility depends on motor power (HP), gear ratio, voltage/frequency, and mounting bolt pattern. LiuDrive center drives feature:
- All-aluminum housing for superior heat dissipation in continuous-duty operation
- Helical gear reduction at 95% efficiency
- TENV motor (Totally Enclosed Non-Ventilated), Class H/F insulation, IP45 rated
- Cartridge output seals eliminating shaft grooving and oil leaks
- Auto-reset thermal overload protection
- Universal mounting pattern: fits 3 3/8″ × 6 3/8″, 4 3/4″ × 7 1/4″, and 5″ × 6″ bolt patterns
UMC Center Drive Replacements
UMC center drives are the most widely installed gearmotors in the global center pivot market, used on Reinke, Zimmatic, Valley, Lockwood, Pierce, and Olson systems.
LiuDrive replacement specifications (UMC-compatible):
- Motor Options: 0.6 HP, 0.75 HP, 1.5 HP (3-phase)
- Gear Ratio Options: 20:1, 25:1, 30:1, 40:1, 50:1, 60:1
- Voltage / Frequency: 460V / 60Hz — 415V / 50Hz — 380V / 50Hz
- Universal bolt pattern — fits Zimmatic, Valley, Reinke, Lockwood, Pierce, Olson
👉 View UMC Center Drive Replacement
Durst Center Drive Replacements
Durst helical gearmotors are used on Lockwood, and were previously OEM supply for several other pivot brands before UMC gained market dominance. LiuDrive’s Durst-compatible center drive maintains the same helical gear design and bolt pattern.
LiuDrive replacement specifications (Durst-compatible):
- Motor Options: 0.75 HP, 1.0 HP, 1.5 HP
- Gear Ratio Options: 30:1, 40:1, 50:1
- Voltage / Frequency: 460V / 60Hz — 415V / 50Hz — 380V / 50Hz
👉 View Durst Center Drive Replacement
ICII Center Drive Replacements
ICII center drives are used across their distribution network and in OEM supply to several international pivot brands, particularly in the Middle East and export markets.
LiuDrive replacement specifications (ICII-compatible):
- Motor Options: 0.75 HP, 1.5 HP
- Gear Ratio Options: 25:1, 30:1, 40:1, 50:1
- Voltage / Frequency: 460V / 60Hz — 380V / 50Hz
Pivot System Compatibility
LiuDrive wheel gearboxes and center drives are compatible with all major center pivot and linear move irrigation systems:
| Pivot System Brand | Wheel Gearbox Ratio | Compatible LiuDrive Models |
|---|---|---|
| Valley (Valmont) | 52:1 | 740UV, A1339-7786, V1339-7830, OFD-52-V |
| Zimmatic (Lindsay) | 50:1 | 740U, AT Gearbox, OFD-50-G2 |
| Reinke | 50:1 | 740U, A1339-7786 (50:1), OFD-50-G2 |
| T-L (Hydraulic) | 50:1 | 740U (driven/slave version) |
| Lockwood | 50:1 | 740U, OFD-50-G2 |
| Pierce | 50:1 | 740U, OFD-50-G2 |
| Olson | 50:1 | 740U, OFD-50-G2 |
| Towable Systems | 50:1 / 52:1 | TNT2U, TNT2UV, A1339-7824T |
Center drive gearmotors are universally compatible via the 3-bolt-pattern mounting system — the same unit installs across Valley, Zimmatic, Reinke, Lockwood, Pierce, and Olson systems without modification.
Why Distributors Source from LiuDrive
Batch Consistency for Long-Term Supply Programs
Every LiuDrive gearbox and center drive is manufactured to a fixed specification. The unit you receive in your third container order is dimensionally and functionally identical to your first. This is critical for distributors managing field replacement inventory — your customers install these components alongside OEM units, and consistency matters.
Competitive Cost for Higher Margins
Factory-direct pricing gives distributors a meaningful cost advantage over sourcing through North American or European distribution chains. Our pricing reflects direct manufacturing economics, not distributor mark-up stacking. The cost differential translates directly into your margin or your competitive pricing in the market.
3–15 Day Standard Dispatch
We maintain standing stock on standard models. Small to medium orders dispatch within 3–15 days. For container-volume orders, our production scheduling ensures predictable lead times aligned with pre-season demand cycles — no surprises during your peak supply window.
Sample Validation Before Scale
We support small-batch sample orders for fit verification and field testing before committing to container quantities. This is standard practice for new distributor relationships and we encourage it.
2-Year Warranty + Lifetime Technical Support
All LiuDrive wheel gearboxes carry a 2-year warranty. Technical support — including model identification, ratio selection, and field troubleshooting — is available for the life of the product.
Local Assembly Support
Distributors who wish to source components and perform final assembly in their local market are welcome to do so. This structure can reduce import duty exposure and give you greater flexibility in serving your end customers.
Frequently Asked Questions
Are LiuDrive gearboxes truly fit-verified, or just dimensionally similar? Fit-verified means we have physically confirmed fitment on the actual pivot systems listed — not just compared drawings. Our standard models have been installed and field-tested on Valley, Zimmatic, Reinke, T-L, Lockwood, Pierce, and Olson systems. If you have a specific model or system configuration you want confirmed, send us the details and we will verify before you commit to an order.
What is the minimum order for a first supply trial? There is no formal minimum. Most new distributor relationships start with a sample order of 2–5 units per model for field validation, followed by a larger stocking order once compatibility is confirmed. We support this process because it leads to better long-term supply relationships.
Can you supply a full container mix of wheel gearboxes and center drives? Yes. We regularly supply mixed containers combining wheel gearbox models and center drive variants to match distributor inventory needs. Provide your model mix and quantities and we will confirm pricing and lead time.
What voltage options are available for center drives? All LiuDrive center drives are available in 460V/60Hz (North America), 415V/50Hz (UK/Australia), and 380V/50Hz (most of Europe, Middle East, and Asia). Specify at time of order.
Do you support private label or OEM branding? Yes. For distributors with established volume, private label packaging and branding options are available. Contact us to discuss requirements.
What if I need a model not listed here? Send us the brand, part number, or a photo of the existing unit. We cover more models than listed in this guide. If we do not have a direct match in production, we can evaluate a custom run based on your volume requirements.
Summary & Next Steps
If you are sourcing center pivot irrigation drivetrain components — wheel gearboxes or center drive gearmotors — as a distributor or OEM program manager, LiuDrive provides factory-direct supply with fit-verified compatibility across UMC, Durst, Omni, ICII, Valley, and Zimmatic specifications.
Standard models are in stock. Mixed container orders are supported. Sample validation is encouraged before scaling.
Send us your model list or current supply requirements and we will respond with pricing and lead time within 24 hours.
